TP-LINK VIGI 8CH POE Network video recorder,H2.65+,2CH@8MP,4CH@4MP,8CH@2MP,UPnP/NTP,Android,iOS,1xSATA Interface up to 10TB,2xUSB2.0,1xRJ45 10/100Mbps,HDMI/VGA, Audio in-out,4K HDMI Output, ONVIF CGI,POE BUDGET:53W,PSU:53.5VDC/1.31A
POE Network video recorder
Overview

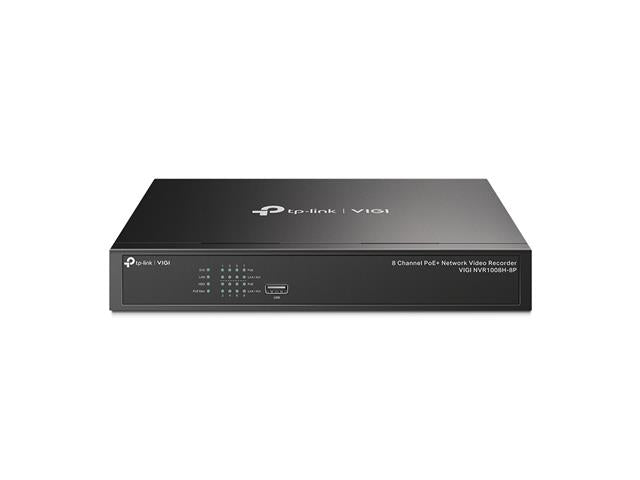

MODEL: VIGI NVR1008H-8P
Specifications
NVR
- Product Model VIGI NVR1008H-8P
Video and Audio
- IP Video Input 8-Channel
- Incoming Bandwidth 80 Mbps
- Outgoing Bandwidth 60 Mbps
- HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz,1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- Video Output Mode HDMI/VGA Simultaneous Output
- Multi-View Display 1/4/6/8
Decoding
- Audio Compression G.711A/G.711U/G.726
- Video Compression H.265+/H.265/ H.264+/H.264
- Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 8-Channel
- Capability 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
Record Management
- Record Mode Manual Recording, Scheduling Recording, Motion Detection Recording
- Playback Mode Instant Playback, Rgular Playback, Tag Playback, Event Playback
- Backup Mode Regular Backup, Video Clip Backup
- Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, FullScreen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
- Network Protocols UPnP (Plug and Play), NTP (Network Timing)
- Interoperability ONVIF, CGI
- Mobile Phone Access Android, iOS
- Browser Chrome (57+), Firefox (52+), Edge (91+)
PoE
- Interface 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
Specifications
- Power 53 W Available for All PoE+ Ports, 30 W Max per Port
- Standard 802.3at/af Compliant

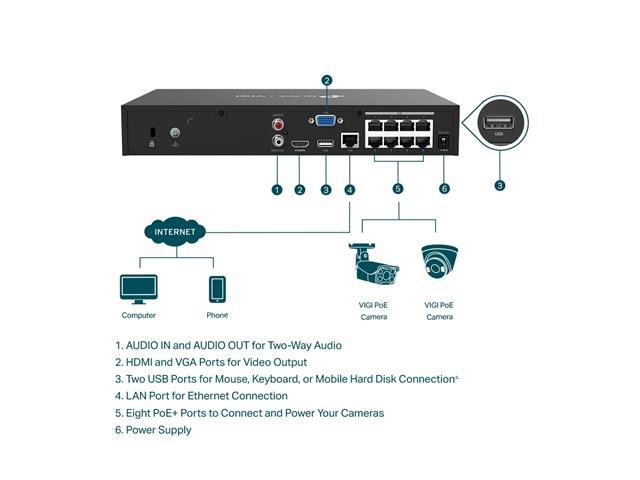

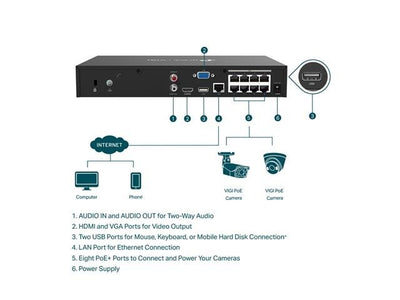

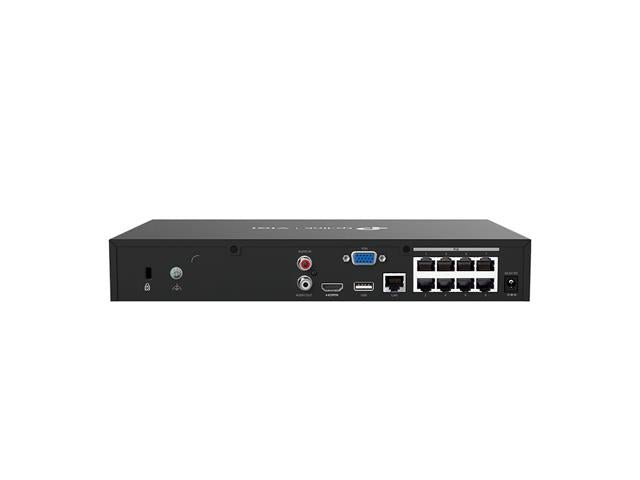

Auxiliary Interface
- Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- USB Interface 2× USB 2.0
- Audio Interface 1, Audio In; 1, Audio Out
- Alarm In/Out N/A
- Serial Interface N/A
- Power 1× DC Jack
- Reset Button 1
- Speaker N/A
- eSATA N/A
- HDMI 1
- VGA 1
Hard Disk
- SATA 1 SATA Interface
- Capacity Up to 10 TB Capacity for Each HDD
Alarm
- General Alarm Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection
- Anomaly Alarm Video Loss, Offline and IP Conflict,Disk Exception, Login Exception, Fan Exception
- Alarm Linkage Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm
General
Package Contents
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
- Power Supply 53.5V DC/1.31A
- Power Consumption
2.38 W (without disk)
12.94 W (with disk)
NVR: -10–55 °C
Power Adapter: 0–40 °C
- Storage Temperature -40-70 °C
- Working Humidity 10%~90% RH Non-Condensing
- Storage Humidity 10%~90% RH Non-Condensing
- Product Dimensions (W × D × H) 294 × 180 × 44 mm
- Net Weight 1.12 Kg
- Gross Weight 2.06 Kg
- Certification CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
