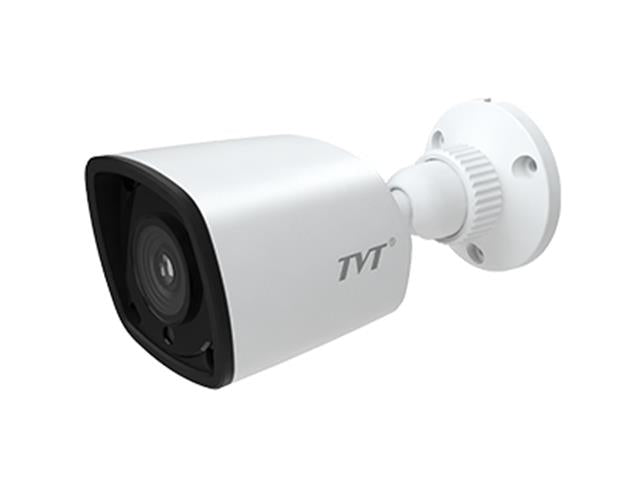

Bullet Camera AHD, 5MP IR Water-proof, 1/2.5”CMOS, 2560x1936, 3.6mm Lens, 10~20m IR, Day-Night, AHD/TVI/CVI Output Available, IP66
5MP HD Analog IR Bullet Camera
Feature(s)
- 5MP real-time image, high resolution, true color
- AHD / TVI / CVI standard and lossless video output
- Up to 1400 TVL resolution
- CMOS progressive scan, perfectly capture the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / night
- 10 ~ 20m IR night view distance
- IP66 ingress protection
- Support COC
Specifications
Camera
- Image Sensor : 1 / 2.5 "CMOS
- Resolution : 5MP
- Image Size : 2560 x 1936
- Image System : PAL / NTSC
- Electronic Shutter : Auto
- IR Distance : 10 ~20 m
- Frame Rate : 20fps
- Min. Illumination : 0 lux (IR ON)
- Lens : 3.6 mm
- Lens Mount : M12
- S / N Ratio : ≥52dB ( AGC OFF )
- Ingress Protection : IP 66
Functions
- Function Control : OSD (COC Control)
- Day & Night : ICR
- Digital WDR : Yes
- Digital NR : Yes
- Global Exposure : Yes
- Central Exposure : No
- AGC : Yes
- Auto White Balance : Yes
- BLC : Yes
- LSC : No
- Contrast : Yes
- Sharpness : Yes
- Smart IR : No
- Image Setting : Yes
- Defect Correction : Auto
- Language : Chinese and English
- Angle Adjustment : Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Others
- Power Supply : DC12V ( ± 15% )
- Power Consumption : IR OFF : < 1W; IR ON : < 3.5W
- Working Environment : - 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity）
- Dimensions ( mm ) : Ф 70 x 156
- Weight ( net ) : Approx. 0.3KG
Downloads
Additional Information
| Device |
Camera |
| Type |
5MP | HD | Analog | IR | Bullet |
