• 5MP real-time image, high resolution, true color
• AHD / TVI / CVI standard and lossless video output
• Up to 1400 TVL resolution
• CMOS progressive scan, perfectly capture the moving object
• Support OSD menu
• High speed, long distance and real time transmission
• Auto color to B / W at low illumination
• Support ICR switch, true day / night
• 10 ~ 20m IR night view distance
• IP66 ingress protection
• Support COC

Camera

• Image Sensor : 1 / 2.5 "CMOS
• Resolution : 5MP
• Image Size : 2560 x 1936
• Video Output : AHD / TVI /CVI
• Image System : PAL / NTSC
• Electronic Shutter : Auto
• IR Distance : 10 ~20 m
• Frame Rate : 20fps
• Min. Illumination : 0 lux (IR ON)
• Lens : 3.6 mm
• Lens Mount : M12
• S / N Ratio : ≥52dB ( AGC OFF )
• Water-proof : IP 66

Functions

• Function Control : OSD ( COC Control )
• Day & Night : ICR
• Digital WDR : Yes
• Digital NR : Yes
• Global Exposure : Yes
• Central Exposure : No
• AGC : Yes
• Auto White Balance : Yes
• BLC : Yes
• LSC : No
• Contrast : Yes
• Sharpness : Yes
• Smart IR : No
• Image Setting : Yes
• Defect Correction : Auto
• Language : Chinese and English
• Angle Adjustment : Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°

Others

• Power Supply : DC12V ( ± 15% )
• Power Consumption : IR OFF : < 1W; IR ON : < 2.5W
• Working Environment : - 30 °C ~ 50 °C, 10 % ~ 90 %(relative humidity)
• Dimensions ( mm ) : Ф 108 x 90.4
• Weight ( net ) : Approx. 0.39kg

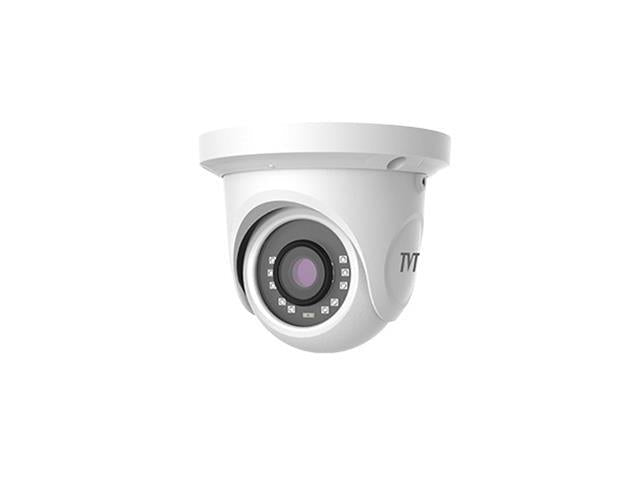

1. Datasheet - TVT TD-7554AS (D/IR1)
