TVT TD-9453E3A (D/AZ/PE/AR5)

SKU: TVT TD-9453E3A (D/AZ/PE/AR5)

BRAND: Tvt


BULLET Camera 5MP 2.8~12mm Lens, 50~70m IR, 1/2.7 "CMOS, H2.65/H2.65+, 3D DNR, WDR120db, Motorized Lens, Intelligent Analytics with Classification, 64Kbps~8Mbps, VBR/CBR, DC12V/PoE, 1CH Audio I/P & 1CH Audio O/P, Face Detection, IP67

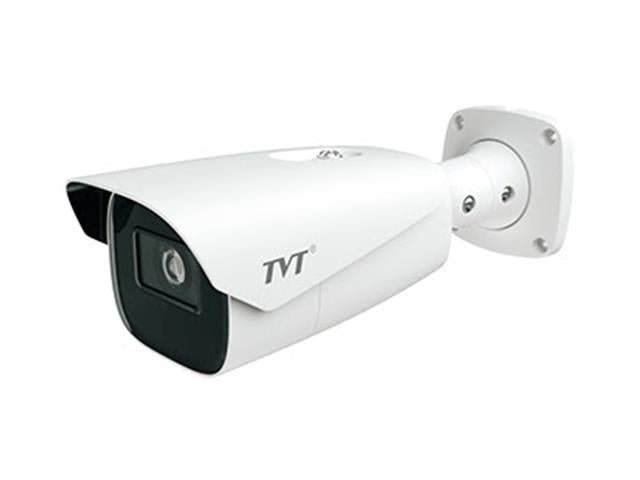

5MP Network IR Water-Proof Bullet Camera

Feature(s)

  • H.265S/H.265+/H.265/H.264S/H.254+/H.254/MJPEG coding
  • Max. resolution: 2592 × 1944
  • ICR auto switch, true day / night vision
  • Up to 100m IR night view distance; motorized zoom lens
  • 3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart IR and ROI coding
  • Support image distortion correction
  • Built-in micro SD card slot; up to 256GB
  • DC12V/PoE power supply
  • IP 67 ingress protection
  • Support three streams
  • Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
  • Intelligent analytics

Specifications

Camera
Image Sensor 1 / 2.7" CMOS
Image Size 2592 × 1944
Electronic Shutter 1 / 3 s ~ 1 / 10000 s
Iris Type Fixed Iris DC Iris
Min. Illumination 0.009 lux@F1.6,AGC ON; 0 lux with IR 0.007lux@F1.4,AGC ON; 0 lux with IR
Lens 2.8~12mm@F1.4, H.FoV: 90°~31°; V.Fov: 67°~24°; D.FoV: 115°~38°
Focus Fixed Motorized
Lens Mount M12 Ø14
Day & Night ICR
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
Video Compression Main stream: H.265S / H.265+ / H.265 / H.264S / H.264+ / H.264 / MJPEG
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Main Stream 5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
Sub Stream 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, Image Flip, Image Mirror, NR,etc. adjustable through client software or web browser
ROI Each ROI to be configured separately
Interfaces
Network RJ45
Video Output No
Audio 1CH audio input
Storage Built-in micro SD card slot; up to 256GB
Reset Yes
Alarm No
Intelligent Analytics (Smart Events)
Perimeter Protection Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification)
Target Counting Target counting by line, target counting by area, heat map
Exception Detection Scene change, video blur detection and video cast detection
Face Detection Face detection and face capture
General Intelligence Crowd density detection, object abandoned/missing
DORI Distance
Lens Detect Observe Recognize Identify
2.8~12mm(W) 58.7m(192.58ft) 23.5m(77.09ft) 11.7m(38.38ft) 5.9m(19.35ft)
2.8~12mm(T) 182.9m(600.06ft) 73.2m(240.15ft) 36.6m(120.07ft) 18.3m(60.03ft)
Functions
Remote Monitoring Web Browser/TVT NVMS2.0/NVR/mobile APP
Web Browser IE(plug-in required)/Google Chrome/Edge/Firefox/Safari
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, HTTP POST, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full
General Function Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, corridor pattern
PoE Yes , IEEE802.3af
IR Distance 30 ~50 m
Ingress Protection IP67
Others
Power Supply DC12V/PoE
Power Consumption < 8.5W < 9W
Storage Conditions - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm ) 217.8 × 80.5 × 80.3
Weight ( net ) Approx. 0.662KG Approx. 0.69KG
Installation Ceiling mounting; Wall mounting
Certificate CE, FCC
Environmental Protection Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)

Downloads

Additional Information

Device Camera
Type 5MP | Network | IR | Water-Proof | Bullet
