TVT TD-K11-W

Name: TVT TD-K11-W - Communica [Part No: TVT TD-K11-W]
Brand: Tvt
SKU: TVT TD-K11-W
Price: 4350 ZAR
Availability: InStock

SKU: TVT TD-K11-W

BRAND: Tvt

In Stock
R 5,002.50_{(inc VAT)}
R 4,350.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance, Weight 10+

Type: CCTV Products & Accessories

Category: CCTV Accessories

PTZ Keyboard Controller Intergration with NVMS-5000, LCD Display, RJ45 10/100m Ethernet Port, RS485/RS232, 12VDC, 8W, 420x260x170mm, 28kg

PTZ Keyboard Controller Intergration

Overview

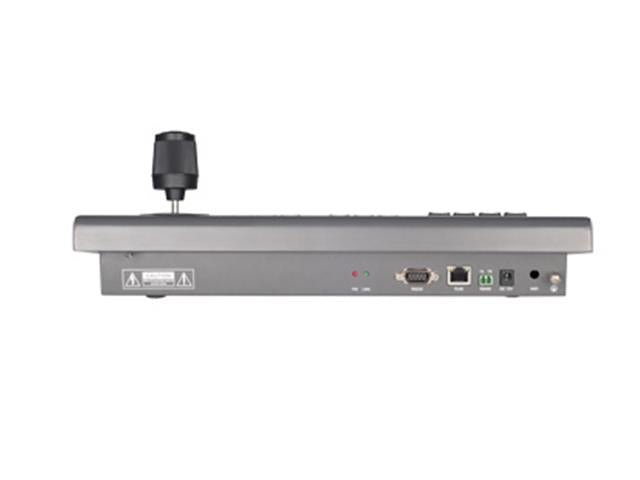

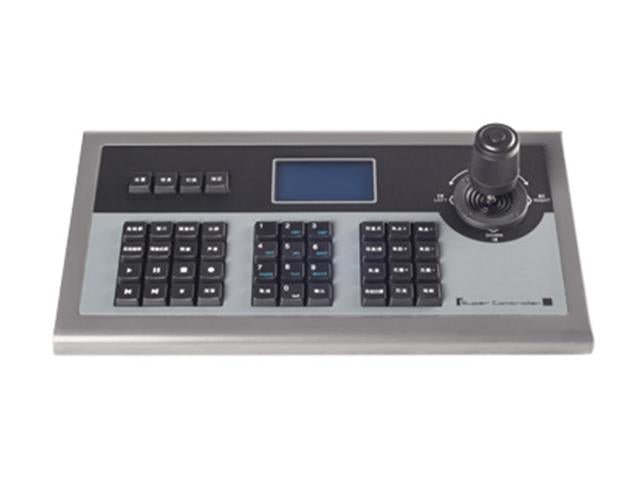

TD-K11-W is a newly developed network controlling keyboard by TVT, working together with NVMS-5000 platform. It can be widely used in Finance, Buildings, Factory, Police, Telecommunication, School, Water conservancy and other fields.

Specifications

Local Parameters
Display	LCD display, multi-language menu supported
Joystick	Four-dimensional rocker
Keys	Four functional areas
Network Parameters
Network Interface	One RJ45 10/100M Adaptive ethernet port
Control Mode	PTZ mode and platform mode
Network Management	The network keyboard can be configured and the software can be upgraded by WEB client
Serial Port Parameters
Serial Port	Two standard serial ports: RS485 × 1, RS232 × 1
Bit Rate	1200bps、2400bps、4800bps、9600bps、19200bps
Others
Power Supply	DC12V
Power Consumption	≤8W
Working Temperature	-10℃~＋60℃
Working Humidity	10%~90%
Dimension	420( L ) × 260( W ) × 170 ( H ) mm
Weight	2.8kg

Downloads

Datasheet - TVT TD-K11-W

Additional Information

Device	Keyboard Controller
Type	PTZ \| Intergration
