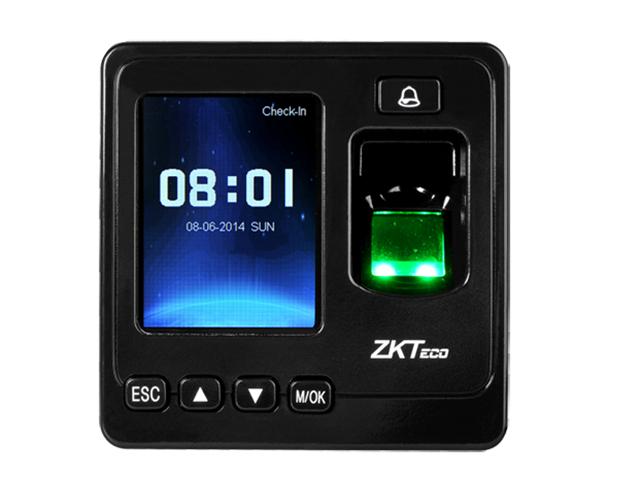

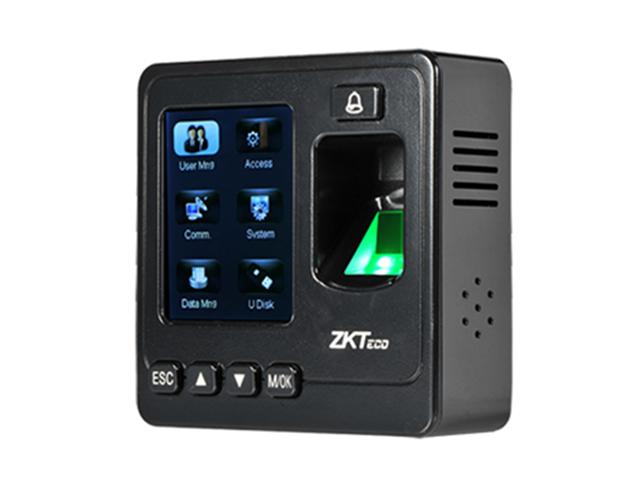

ZK Teco SF200 Standalone Fingerprint Reader used for Access Control / Time & Attendance Features
IP Based Fingerprint Reader
Features
- 2.4-inch color display with graphical UI for easy operation
- Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
- Prompt audio acceptance or rejection signals for valid or invalid fingers
- Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
- TCP/IP or RS485 communication for various networking environments
- Supports USB flash drive for offline data management
- Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
- Up to 15 multi-verification methods to enhance security level
- Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
- Duress Alarm offers effective protection against duress by threats
- Tamper proof switch and multiple alarm outputs
- Multi-languages customizable
Specifications
- Model : SF100
- LCD : 2.4-inch TFT (320 x 240) Color Screen
- Fingerprint Sensor : ZK Optical Sensor (500DPI)
- Algorithm Version : ZKFinger VX10.0
- Communication : TCP/IP, RS485, USB Host
- Fingerprint Capacity : 1,500
- Card Capacity : 5,000
- Records Capacity : 80,000
- Access Control Interface : Electric lock, Door sensor, Alarm, Exit button, Doorbell
- Wiegand Signal : Wiegand input & output
- Aux. Input : 1ea for linkage function
- Power Supply : DC 12V/3A
- Operating Temperature : 0 ~ 45°C (32°~113°F)
- Operating Humidity : 20 ~ 80%

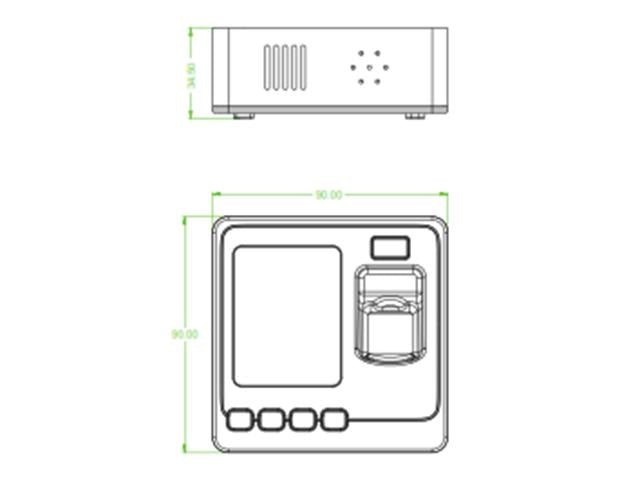

- Dimension(W x L x H) : 90 x 90 x 34.5mm
Downloads
Additional Information
| Device |
Fingerprint Reader |
| Type |
IP Based | Network | Standalone Mode |
| Highlights |
Works with Network and Standalone Mode |
Enhance security and streamline access control with the ZKT SF100 Fingerprint Reader. Featuring a user-friendly 2.4-inch color display, it supports up to 1,500 fingerprints and 5,000 cards, ensuring efficient time and attendance management. Its compact design and versatile connectivity options make it perfect for any environment, while customizable multi-verification methods provide peace of mind. Upgrade your access control system with this reliable, high-performance device.
