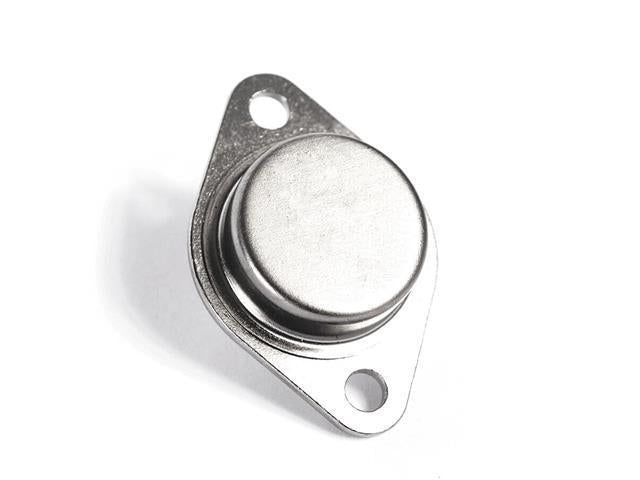

2N5955

Name: 2N5955 - Communica [Part No: 2N5955]
Brand: Communica
SKU: 2N5955
Price: 220 ZAR
Availability: InStock

SKU: 2N5955

BRAND: Communica

In Stock
R 253.00_{(inc VAT)}
R 220.00_{(ex VAT)}

P 70V 6A 30MN TOP66

Specifications

Mounting Style:	Through Hole
Package/Case:	TO-66-2
Transistor Polarity:	NPN
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	60 V
Collector- Base Voltage VCBO:	70 V
Emitter- Base Voltage VEBO:	5 V
Collector-Emitter Saturation Voltage:	1 V
Pd - Power Dissipation:	40 W
Gain Bandwidth Product fT:	4 MHz
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 200 C
Series:	2N59
Brand:	Central Semiconductor
Continuous Collector Current:	6 A
DC Collector/Base Gain hFE Min:	20 at 3 A, 4 V
DC Current Gain hFE Max:	100 at 3 A, 4 V

Device

Transistor
