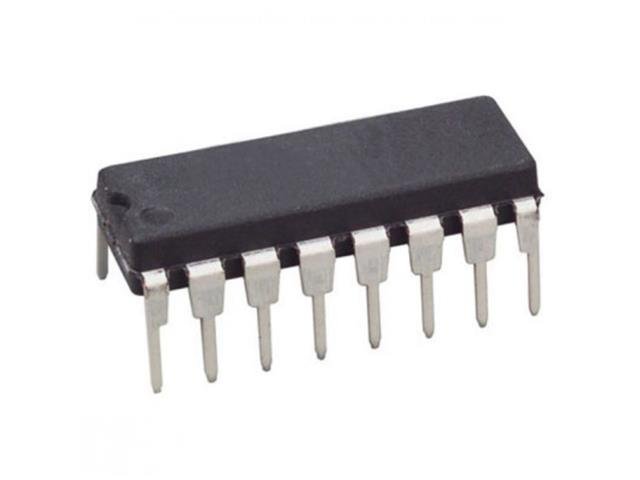

74182

SKU: 74182

BRAND: Communica

In Stock
R 5.18_{(inc VAT)}
R 4.50_{(ex VAT)}

Collections: Semiconductors

Type: Logic ICs

Category: Programmable Logic ICs

Generator Look Ahead Carry

Specifications

Supply voltage : +4.5V - +5.5V
High–level input voltage : 2.0V
Low–level input voltage : 0.8V
Input Clamp Diode Voltage : -1.2V
Input High Current : 5.0μA
Output Low Voltage : 0.5V
Input High Current Breakdown Test : 7.0μA
Output High Leakage Current : 50μA
Output Leakage Circuit Current : 3.75μA
Output Short-Circuit Current : −60 −150mA

Additional Information

Device

Ahead Carry
