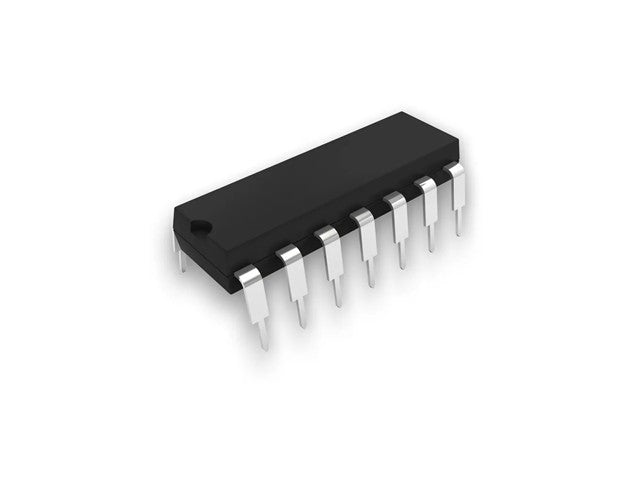

74HC10

SKU: 74HC10

BRAND: Texas

In Stock
R 15.53_{(inc VAT)}
R 13.50_{(ex VAT)}

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Triple 3-Input NAND Gate

Specifications

Logic Type: NAND.
Propagation Delay Time: 95 ns at 2V / 16 ns at 6V.
No. of Gates:3 .
Output Current: 5.2 mA at 6 V .
No. of Inputs: 3X 3 .
No. of Pins: 14.
Operating Temperature Range: -40°C to +125°C.
Supply Voltage Range: 2V to 6V.
Package: DIP-14

Downloads

Datasheet - 74HC10

Additional Information

Keywords	NAND Gate
Device	Logic Gate
