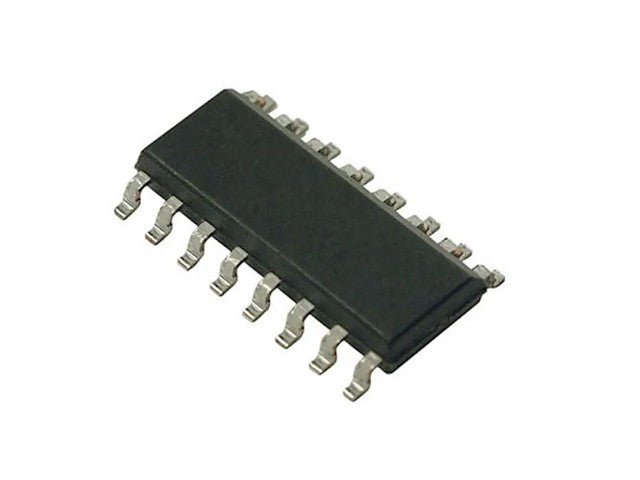

74HC132M1R

SKU: 74HC132M1R

BRAND: Communica

In Stock
R 6.04_{(inc VAT)}
R 5.25_{(ex VAT)}

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

Quad 2-Input NAND Gate with Schmitt-Trigger Inputs SO14

Specifications

High Speed : tPD = 16 ns (TYP.) AT VCC = 5 V
Low Power Dissipation : ICC = 4 µA AT TA = 25 °C
Output Drive Capability : 10 LSTTL LOADS
Balanced Propagation Delays : tPLH = tPHL
Symmetrical Output Impedance : |IOH| = IOL
High Noise Immunity : VNIH = VNIL = 28 % VCC (MIN.)
Wide Operating Voltage Range : VCC (OPR) = 2 V TO 6 V
Pin And Function Compatible : WITH 54/74LS138

Additional Information

Device

NAND Gate
