74LS20M1

SKU: 74LS20M1

BRAND: Communica

In Stock
R 9.35_{(inc VAT)}
R 8.13_{(ex VAT)}

Collections: Semiconductors

Type: Logic ICs

Category: Logic Gates

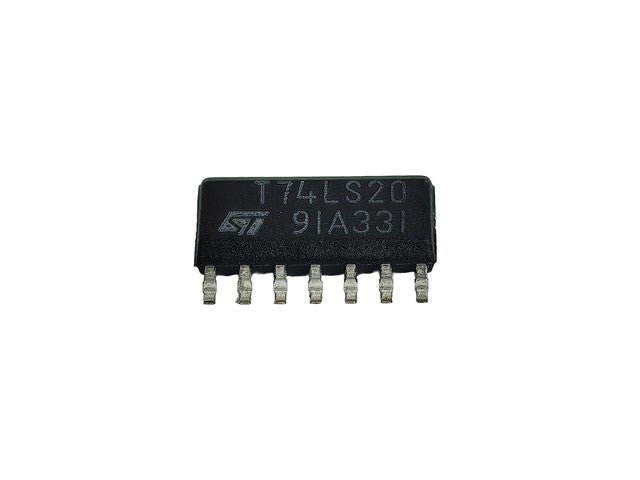

Dual 4input NAND Gate SMD

Specifications

Logic Family: 74LS (Low-Power Schottky TTL)
Function: Two independent 4-input NAND gates
Inputs / Outputs: 8 inputs (A1-D1, A2-D2), 2 outputs (Y1, Y2)
Logic Type: Positive logic
Voltage Supply (Vcc): 4.75 V to 5.25 V
Input Voltage (VIH / VIL): VIH ≥ 2 V (HIGH); VIL ≤ 0.8 V (LOW)
Output Current HIGH: −0.4 mA (IOH), LOW: 8 mA (IOL)
Power Consumption: Low – ~2 mW typical per gate
Propagation Delay: ~9 to 30 ns typical per gate (depending on load and temperature)
Operating Temperature: 0 °C to +70 °C
Package (M1 variant): Likely SOIC-14 (Small Outline IC)
Pin Count: 14 pins
Mounting Type: Surface-mount (for "M1" or "M" packages)

Additional Information

Device

Integrated Circuit
