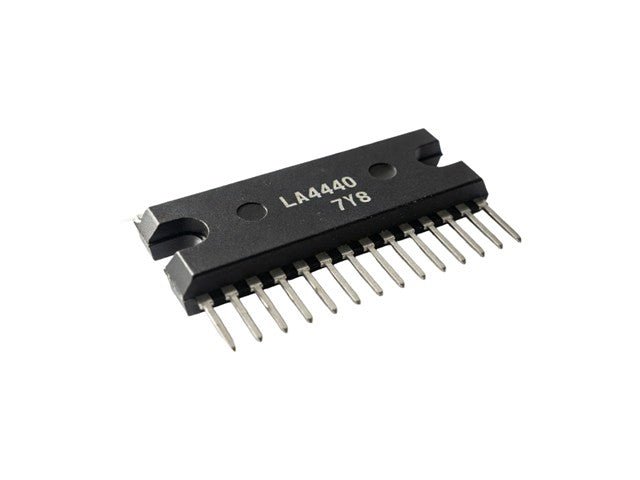

LA4440

Name: LA4440 - Communica [Part No: LA4440]
Brand: Communica
SKU: LA4440
Price: 16.32 ZAR
Availability: InStock

SKU: LA4440

BRAND: Communica

R 18.77_{(inc VAT)}
R 16.32_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Amplifier ICs

Category: Audio Power Amplifier IC

POWER AMP 18V 2X6W /4E 13V

Specifications

Supply voltage range: 9 V to 18 V
Recommended operating voltage: 12 V
Maximum supply voltage: 28 V
Stereo output power:
- 6 W + 6 W into 4 Ω at 13.2 V
Bridge mode (BTL) output power:
- 19 W into 4 Ω at 13.2 V
Load impedance: 2 Ω to 8 Ω
Total harmonic distortion (THD): Low distortion design
Voltage gain: 46 dB typical
Quiescent current: Low idle current operation
Ripple rejection: High ripple rejection ratio

Additional Information

Device

IC

Elevate your audio experience with the LA4440 Power Amp, delivering 6W per channel of crystal-clear sound. Designed for versatility with a wide voltage range (9V-18V), this low distortion amplifier ensures optimal performance for any setup. Enjoy powerful, rich audio with high ripple rejection and low idle current operation, making it the perfect choice for audiophiles and casual listeners alike.
