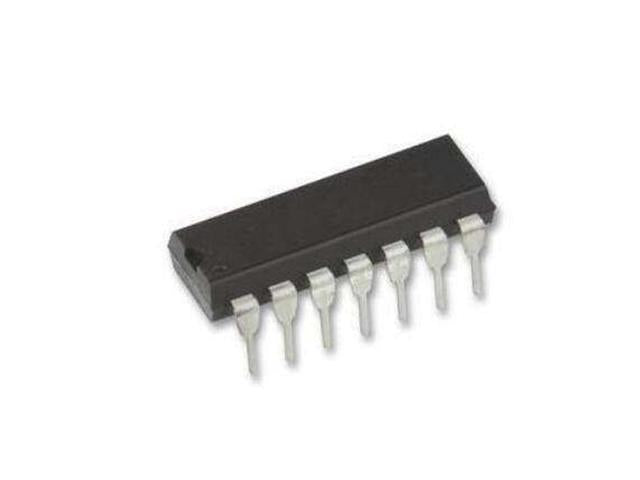

LS285A

Name: LS285A - Communica [Part No: LS285A]
Brand: Communica
SKU: LS285A
Price: 9.15 ZAR
Availability: InStock

SKU: LS285A

BRAND: Communica

In Stock
R 10.52_{(inc VAT)}
R 9.15_{(ex VAT)}

Speech Circuit 14P DIL

Specifications

Supply Voltage (V+ to V-)	Maximum supply voltage range	2.7V to 15V
Quiescent Current	Current consumed by the device when no signal is applied	150 μA
Input Offset Voltage	Maximum difference between the inverting and non-inverting inputs	3 mV
Input Bias Current	Average current flowing into the inverting and non-inverting inputs	1 nA
Input Impedance	Resistance seen at the input terminals	10^12 Ω
Output Voltage Swing	Range over which the output can swing	±13.5V (at V+ = 15V, V- = 0V)
Slew Rate	Maximum rate of change of the output voltage	0.5 V/μs
Gain Bandwidth Product	Frequency at which the open-loop gain drops to unity	1 MHz
Common Mode Input Range	Range of input voltages for which the device operates correctly	V- + 1.5V to V+ - 1.5V
Operating Temperature	Range of temperatures over which the device can operate	-40°C to +85°C
Package	Type of package	8-Pin DIP

Device

IC
