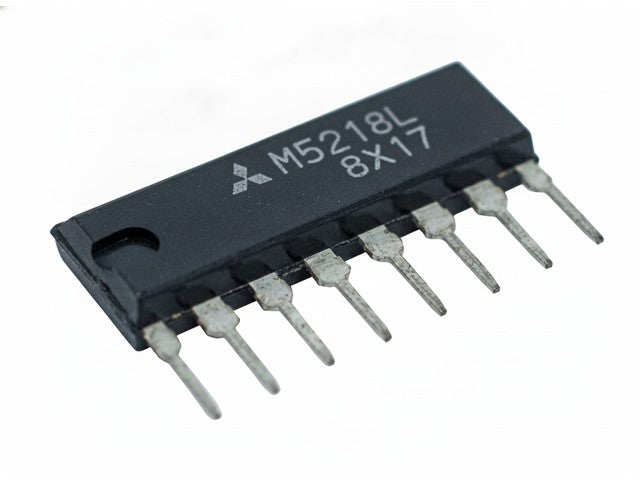

M5218L

• Device Type: Dual Operational Amplifier (Dual Op-Amp)
• Technology: Bipolar Linear IC

Electrical Characteristics

• Supply Voltage Range:
  • Single Supply: 6 V to 36 V
  • Dual Supply: ±3 V to ±18 V
• Input Offset Voltage:
  • Typical: 2 mV
  • Maximum: 6 mV
• Input Bias Current:
  • Typical: 100 nA
• Input Impedance:
  • High input impedance differential stage
• Open-Loop Gain:
  • Typical: 100 dB
• Gain-Bandwidth Product:
  • Typical: 1 MHz
• Slew Rate:
  • Typical: 0.5 V/µs
• Output Voltage Swing:
  • Approximately ±13 V (with ±15 V supply)
• Quiescent Current:
  • Typical: 3–5 mA
