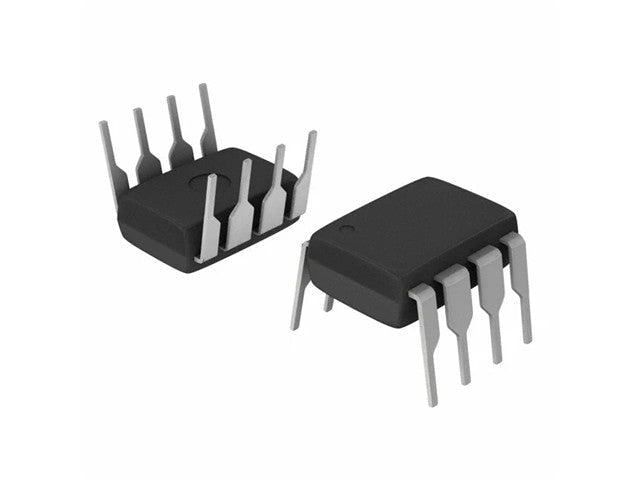

MAX317CPA

SKU: MAX317CPA

BRAND: Communica


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Analogue Switch ICs Precision, SPST, CMOS Analog Switches 8PD

Specifications

  • Device Type: RS-232 Interface Driver
  • Package Type: PDIP-16 (CPA suffix)

General Features

  • Four independent RS-232 line drivers
  • Converts TTL/CMOS logic levels to RS-232 voltage levels
  • Designed for serial communication systems
  • Single-supply operation with external charge-pump circuitry
  • CMOS low-power technology
  • Compatible with EIA/TIA-232-E standards

Electrical Characteristics

  • Supply Voltage:
    • +5 V ±10%
  • Supply Current:
    • Typically 8 mA
  • Output Voltage Swing:
    • ±5 V minimum (RS-232 compliant)
    • Typical ±9 V with charge-pump circuitry

Driver Characteristics

  • Number of Drivers: 4
  • TTL/CMOS compatible inputs
  • RS-232 compliant outputs
  • High-output drive capability
  • Low propagation delay

Data Rate

  • Supports data rates up to:
    • 120 kbps typical

Protection Features

  • Short-circuit protected outputs
  • ESD protection
  • Thermal protection
  • Robust CMOS design

Logic Compatibility

  • Compatible with:
    • TTL logic families
    • CMOS logic families
    • UARTs
    • Microcontrollers
    • Microprocessors

Package Information

  • Package Type: PDIP
  • Pin Count: 16 Pins
  • Mounting Style: Through-Hole

Operating Temperature

  • Commercial Grade (C):
    • 0°C to +70°C

Typical Applications

  • RS-232 serial ports
  • Industrial automation systems
  • Computer peripherals
  • Modems
  • Point-of-sale terminals
  • Telecommunications equipment
  • Embedded systems
  • Data communication equipment

Key Features

  • Four RS-232 drivers
  • Single +5 V operation
  • TTL/CMOS compatible inputs
  • RS-232 compliant outputs
  • Low power consumption
  • High reliability
  • 16-pin DIP package

Additional Information

Device Analogue Switch
