PAL16R8ACN

Name: PAL16R8ACN - Communica [Part No: PAL16R8ACN]
Brand: Communica
SKU: PAL16R8ACN
Price: 25 ZAR
Availability: InStock

SKU: PAL16R8ACN

BRAND: Communica

R 28.75_{(inc VAT)}
R 25.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Programmable Logic ICs

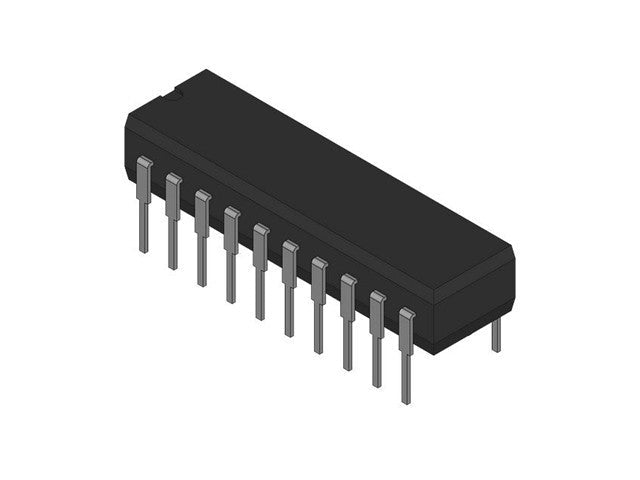

20-Pin Programmable Array Logic (PAL) Integrated Circuit

Specifications

Device Type: PAL16R8 (8 registered outputs)
Package Type: 20-pin Plastic Dual In-Line Package (PDIP / DIP)
Logic Family: TTL (Bipolar)
Speed/Propagation Delay: A-grade typically denotes 25ns or 20ns delay variants depending on the specific manufacturer datasheet
Configuration: Programmable AND array with fixed OR array, featuring 8 dedicated clock-triggered registered outputs

Additional Information

Device

IC

Unlock powerful logic design with the PAL16R8ACN Programmable Array Logic IC. Featuring 8 clock-triggered registered outputs and fast 25ns propagation delay, this versatile 20-pin DIP device is perfect for your TTL projects. Enhance your circuit's performance and reliability with this essential component for seamless integration and innovation.
