TP2104K1

Name: TP2104K1 - Communica [Part No: TP2104K1]
Brand: Microchip
SKU: TP2104K1
Price: 9.68 ZAR
Availability: InStock

SKU: TP2104K1

BRAND: Microchip

In Stock
R 11.13_{(inc VAT)}
R 9.68_{(ex VAT)}

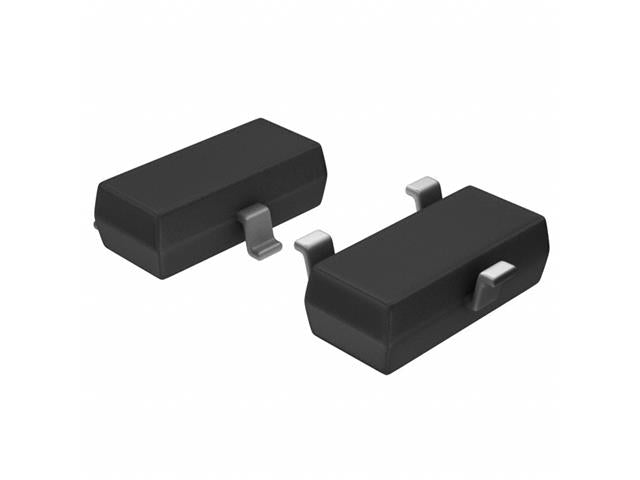

P MOSFET 40V 6R 0,8A SOT23

Specifications

FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	160mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	60 pF @ 25 V
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-236AB (SOT23)

CatGroup	Transistor
Device	Transistor
