59135-2-T-02-A

Name: 59135-2-T-02-A - Communica [Part No: 59135-2-T-02-A]
Brand: Communica
SKU: 59135-2-T-02-A
Price: 271 ZAR
Availability: OutOfStock

SKU: 59135-2-T-02-A

BRAND: Communica

Sold Out
R 311.65_{(inc VAT)}
R 271.00_{(ex VAT)}

Collections: Sensors

Type: Proximity Sensors

Category: Reed Switches

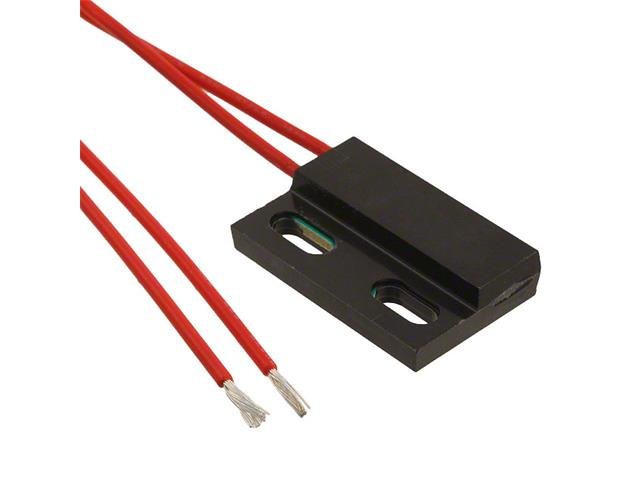

Reed Switch n/o Wide Temp/Hi Voltage 500mA @ 300VDC Max. with Mounting Flange and Flyleads

High Temperature Flange Mount Reed Switch

Specifications

Product Attribute	Attribute Value
Product Category:	Proximity Sensors
Sensing Method:	Magnetic
Sensing Distance:	17.1 mm
Mounting Style:	Screw
Output Configuration:	SPST-NO
Barrel Size:	28.57 mm x 19.05 mm x 6.35 mm
Height:	6.35 mm
Length:	28.57 mm
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 20 C
Operating Supply Current:	400 mA
Operating Supply Voltage:	265 VAC, 300 VDC
Subcategory:	Sensors
Width:	19.05 mm
Unit Weight:	11.576 g

Downloads

Datasheet - 59135-2-T-02-A

Additional Information

Device	Switch
Type	High Temperature \| Flange Mount \| Reed

Enhance your applications with the 59135-2-T-02-A High Temperature Flange Mount Reed Switch. Designed for reliable performance in extreme conditions, this magnetic switch handles up to 300VDC and operates efficiently between -20°C to +105°C. Its compact design and screw mounting ensure easy installation, making it the perfect choice for demanding environments. Upgrade your proximity sensing solutions today!
