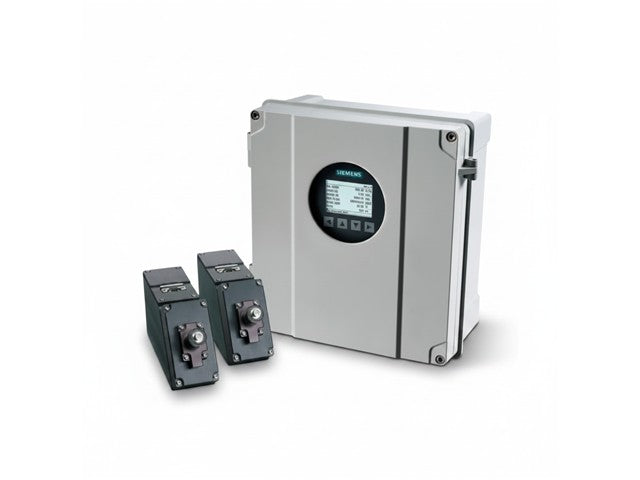

7ME3723-0AA02-1UB3-Z A01+B39+E06
SKU: 7ME3723-0AA02-1UB3-Z A01+B39+E06
BRAND: Siemens
Sold Out
R 160,292.75 (inc VAT) R 139,385.00 (ex VAT)
Siemens SITRANS FS230 Clamp-On Ultrasonic Clamp-on Flowmeter. Suitable For Volume Flow Measurement Of Liquids And Gases In Water & Wastewater.

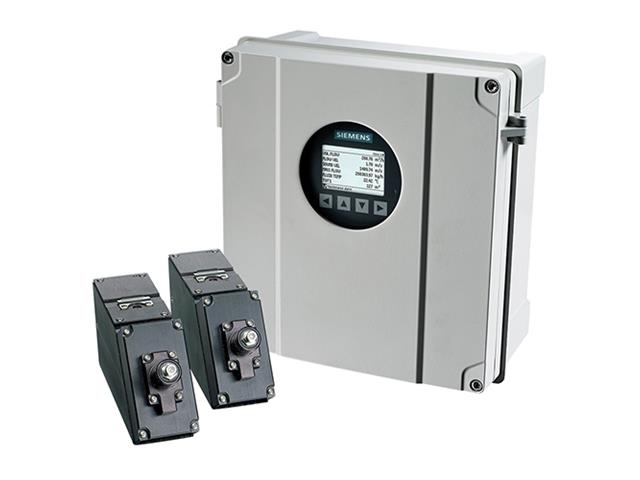

SITRANS FS230 Digital Clamp-on Ultrasonic Flowmeter
Feature(s)
Benefits
Easy installation; no need to cut pipe or stop flow
Minimal maintenance; external sensors do not require periodic cleaning
No moving parts to foul or wear
No pressure drop or energy loss
Wide turn-down ratio
Choice of single and dual path versions to suit your operating conditions and requirements.
Applications
SITRANS FS230 standard functions are suitable for a wide variety of liquid applications, including the following:
Water industry
Raw water
Potable water
Chemicals
Wastewater industry
Raw sewage
Effluent
Sludges
Mixed liquor
Chemicals
HVAC industry
Condensers
Hot and cold water systems
Power industry
Nuclear
Fossil
Hydroelectric
Processing industry
Process control
Batching
Rate indication
Volumetric and mass measurement
Specifications
Manufacturer: Siemens
Product family: SITRANS FS230
Type: Clamp-on ultrasonic flowmeter system
Measurement type:
Ultrasonic clamp-on flow measurement
Volume flow measurement for liquids and gases
Technology:
Non-invasive clamp-on ultrasonic sensing
No pipe cutting required
Transmitter type:
Flow paths:
Dual path configuration (two sensor pairs)
Pipe size range:
Approx. 13 mm to 9144 mm (0.5" to 360") depending on sensor configuration
Applications:
Water & wastewater
HVAC systems
Power generation
Chemical processing
Mining
Pulp & paper
Oil & gas / hydrocarbon transport
Housing type:
Wall mount enclosure
Epoxy-coated aluminum housing
Protection rating:
Power supply:
Universal internal supply
24–240 V AC/DC
50 / 60 Hz
Cable entries:
9 × M20 × 1.5 threaded entries
Display:
Illuminated graphical display
Sensor keys operable through window
Communication / outputs:
HART communication
4–20 mA active/passive outputs
Option A01:
Mounting accessories / mounting bracket included
Option B39:
Hydrocarbon application package
Oil-table compensation with temperature and viscosity correction
Option E06:
ATEX hazardous-area approval
Performance features:
No pressure drop
No moving parts
Minimal maintenance
Wide turndown ratio
High measurement accuracy
Environmental protection:
Suitable for harsh industrial environments
Outdoor-capable enclosure
Mounting method:
External clamp-on installation
Additional features:
Supports process optimization
Suitable for conductive and non-conductive fluids
Remote diagnostics and configuration support
Typical industries:
Water treatment
Petroleum transport
Energy plants
Industrial process automation
Downloads
Additional Information
Device
Flowmeter
Type
Digital | Clamp-on | Ultrasonic | Flowmeter
Experience precise volume flow measurement with the Siemens SITRANS FS230 Clamp-On Ultrasonic Flowmeter. Ideal for water, wastewater, and various industrial applications, this easy-to-install device offers minimal maintenance and no pressure loss, ensuring cost-effective and reliable performance. Optimize your operations with this high-quality flow measurement solution today!
