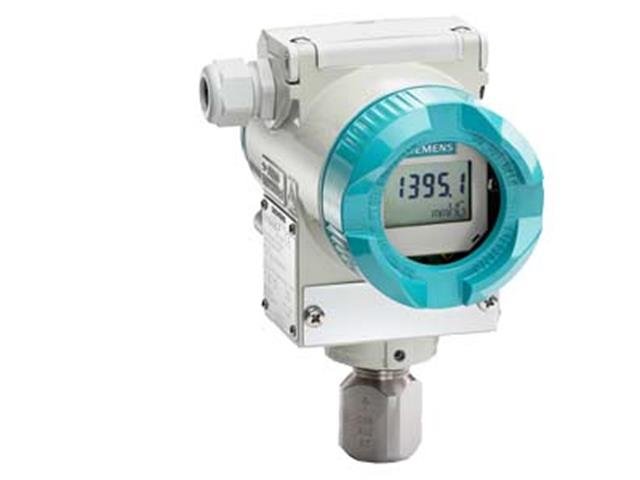

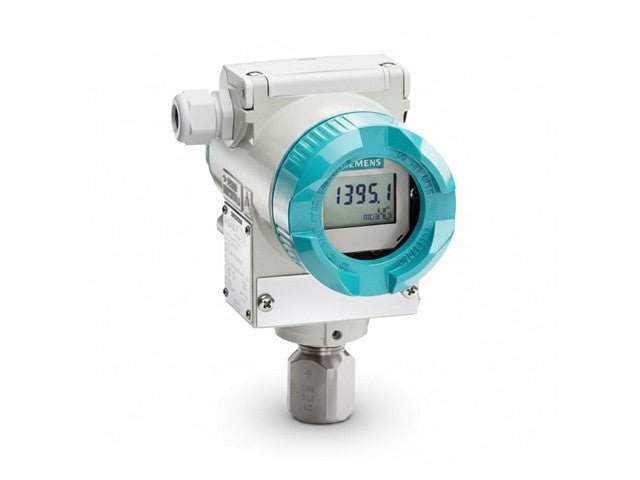

SITRANS P DS III / P410, Hart, 4-20 mA Pressure Transmitter Differential Pressure and Flow - Special Configuration
SITRANS P DS III / P410, Hart, 4-20 mA Pressure Transmitter
Specifications
Manufacturer: Siemens
Product family: SITRANS P DS III / P410
Type: Pressure transmitter (Gauge pressure)
Measurement type:
Gauge pressure measurement
Output signal:
4…20 mA analog output
HART communication protocol
Measuring cell filling:
Silicone oil
Pressure range / span:
0.63 … 63 bar g
(9.14 … 914 psi g)
Overload limit:
100 bar
Wetted parts material:
Stainless steel diaphragm
Stainless steel measuring cell
Process connection:
Female thread 1/2-14 NPT
Housing material:
Die-cast aluminum housing
Housing design:
Standard industrial design
Housing cover with viewing window
Explosion protection:
Intrinsically safe (EEx ia / Ex approved)
Electrical connection / cable entry:
Cable gland M20 × 1.5
Option A02:
Stainless steel mounting bracket included
Option B11:
English plate inscription / labeling
Communication features:
HART diagnostics
Remote parameter configuration
Remote calibration support
Protection features:
Industrial EMC protection
Overpressure resistant design
Intrinsic safety protection
Mounting type:
Process mounting via threaded pressure connection
Applications:
Industrial automation
Process control systems
Oil & gas systems
Chemical processing
Water treatment
Hydraulic pressure monitoring
Additional features:
High accuracy pressure measurement
Suitable for hazardous industrial environments
Rugged industrial construction
Lifecycle status:
Product discontinued
Successor series: SITRANS P320 / P420
Additional Information
Device
Transmitter
Type
SITRANS | P | DS III / P410 | Hart | 4-20 | mA | Pressure | Transmitter
Discover the SITRANS P DS III Pressure Transmitter, designed for precise measurement of air, steam, and liquid flow in demanding environments. With its user-friendly three-button setup and robust construction, this reliable device ensures accuracy and longevity, making it ideal for industries like oil, gas, and petrochemicals. Enjoy peace of mind with features like HART communication, intrinsic safety, and easy parts replacement without recalibration. Enhance your operations with this top-performing pressure transmitter today!
