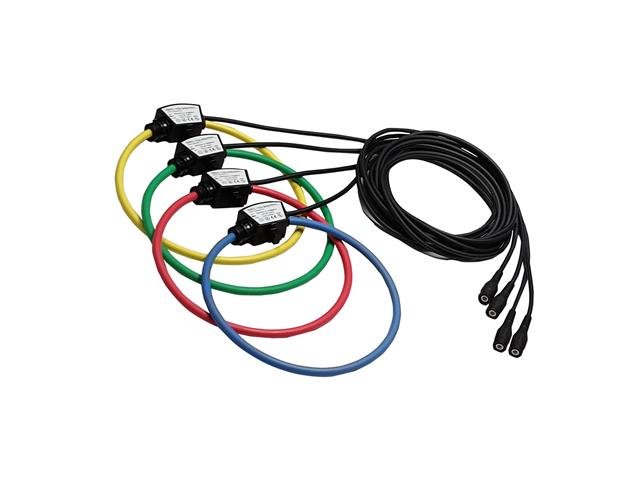

6000A Rogowski Coil for use with ME435, ME440 and MI550 Energy Analyzers. 200mm Diameter. 2m Cable Length: 4 Coils Per Set
6000A Rogowski Coil
Overview

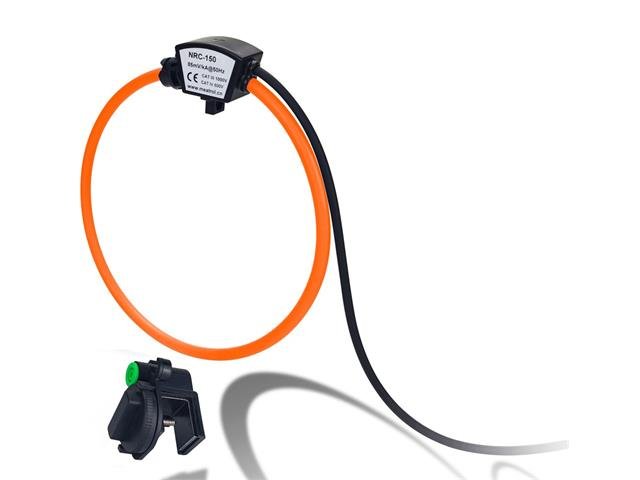

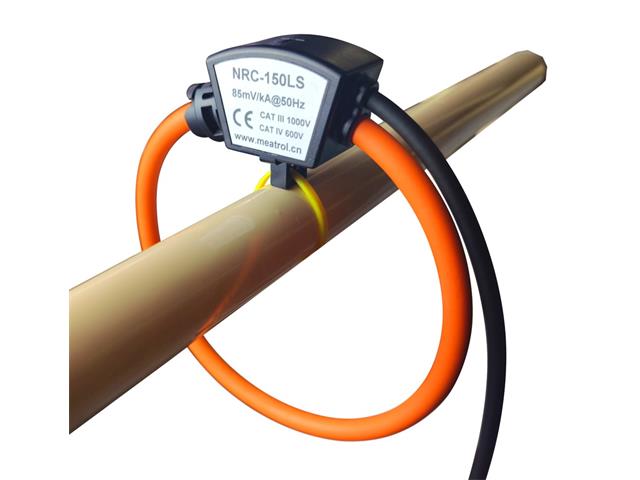

The NRC series is a new generation of flexible Rogowski coil (Rogowski® coil) current sensors, which are especially suitable for measuring in combination with portable devices. NRC coils have different sizes to cope with different conductors. The new generation of NRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields; it can be directly connected to our rail-mounted and panel-type meters without the need for external integrators.
Features
Advantage
Excellent linearity
Wide dynamic range
Not damaged by large overloads
Excellent degree of rejection to the external current conductor
No danger from open-circuited secondary
Zero power consumption
Small position error
Soft and light, easy to install
Long-term stability
Wide dynamic range
IP68 protection level
Applications
Smart meter
Rectifier current measurement
Power quality analysis
Motor overload/short circuit protection
Current monitoring of power frequency and intermediate frequency welding machine
Medium and high voltage switchgear protection system
Remote Terminal Unit (RTU)
Synchronous Phasor Measurement Unit (PMU)
Current measurement on the secondary side of the electric furnace
Experience accurate current measurement with the FLEXIBLE ROGOWSKI COIL 6000A SET. Designed for reliable use with ME435, ME440, and MI550 Energy Analyzers, these lightweight coils provide excellent linearity and a wide dynamic range, ensuring precise readings in various applications. With IP68 protection and easy installation, this set is your ideal solution for smart metering and power quality analysis.
