AGF30

Name: AGF30 - Communica [Part No: AGF30]
Brand: SKS Hirschmann
SKU: AGF30
Price: 26.81 ZAR
Availability: InStock

SKU: AGF30

BRAND: SKS Hirschmann

R 30.83_{(inc VAT)}
R 26.81_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Clips

Category: Crocodile Clips

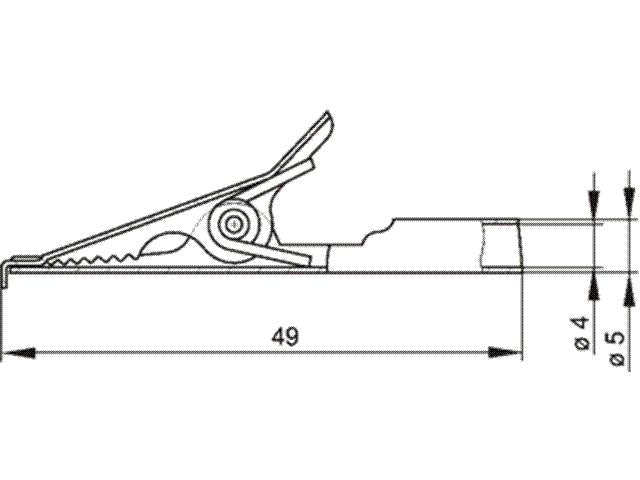

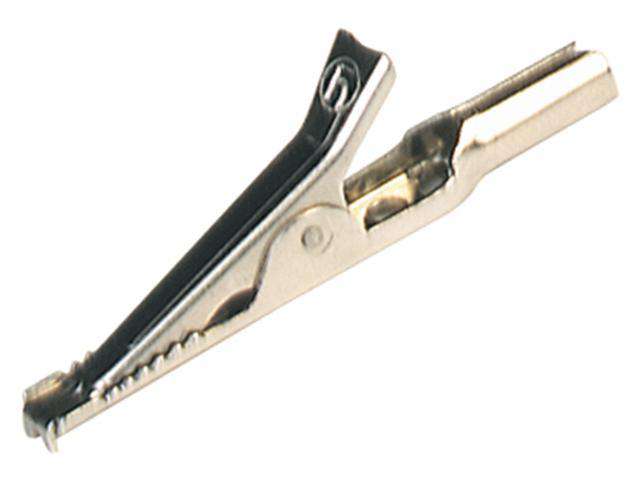

4mm Un-Insulated Croc Clip • Steel

Overview

Features

Nickel Plated Stainless Steel
Special Shape allows clamping of both extremely fine and thick wires
Rust and acid proof and non-magnetic

Specification

connection	unsprung socket 4 mm
rated voltage⁽¹⁾	30 VAC / 60 VDC
measurement cat. acc. to IEC 61010	O ⁽³⁾
rated current⁽¹⁾ (consider derating curve)	4 A
material socket	stainless steel
temperature range acc. To IEC61010⁽²⁾	-25 °C to +100 °C
clamping range	10 mm
standard	IEC 61010

⁽¹⁾ for normal environmental conditions -5°C to +40°C
⁽²⁾ contact the manufacturer for applications at deviating temperature ranges
⁽³⁾ without rated measurement category, for other circuits that are not directly connected to mains

Upgrade your testing setup with the AGF30 4mm Un-Insulated Croc Clip. Crafted from nickel-plated stainless steel, it securely clamps both fine and thick wires while ensuring rust and acid resistance. With a robust temperature range and reliable performance up to 4A, this durable clip is perfect for all your electrical projects. Experience precision and versatility in one essential tool!
