AK2S BLUE

Name: AK2S BLUE - Communica [Part No: AK2S BLUE]
Brand: SKS Hirschmann
SKU: AK2S BLUE
Price: 63.40 ZAR
Availability: InStock

SKU: AK2S BLUE

BRAND: SKS Hirschmann

R 72.91_{(inc VAT)}
R 63.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: SKS Hirschmann, Test & Measurement

Type: Test Clips

Category: Crocodile Clips

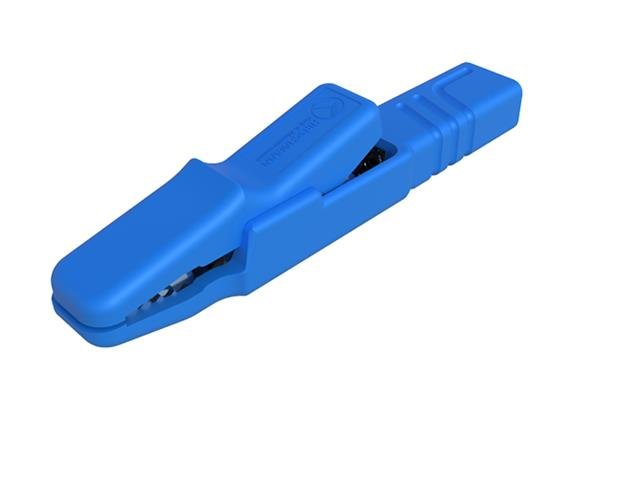

Crocodile Clip 4mm Brass Socket Fully Insulated Opening Diameter 9,5mm 30VAC/60VDC 25A CAT I (932146102)

4mm Brass Socket Crocodile Clip

Overview

Insulated, high strength alligator clip. Clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped. 4 mm diameter socket connection and screw connection up to 1.5 mm².

Specifications

Connection : unsprung socket 4 mm, screw terminal
Rated voltage(1) : 30 VAC / 60 VDC
Measurement cat. acc. to IEC 61010 : O (3)
Rated current(1) (consider derating curve) : 25 A
Material socket : brass, nickel plated
Housing material : PP
Temperature range acc. To IEC61010(2) : -25 °C to +80 °C
Inflammability class acc. to UL 94 (only valid for basic material of housing) HB
Clamping range : 9,5 mm

Additional Information

Device	Crocodile Clip
Type	4mm \| Brass \| Socket

Discover the AK2S BLUE Crocodile Clip, featuring a fully insulated 4mm brass socket for secure connections. With a clamping range up to 9.5mm and a robust 25A current rating, it’s perfect for precise electrical tasks. Experience reliability and safety in every project!
