BDD UNIVERSAL SENSOR INDICATOR - Panel Meters -

BDD UNIVERSAL SENSOR INDICATOR

Name: BDD UNIVERSAL SENSOR INDICATOR - Communica [Part No: BDD UNIVERSAL SENSOR INDICATOR]
Brand: Communica
SKU: BDD UNIVERSAL SENSOR INDICATOR
Price: 691.30 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: BDD UNIVERSAL SENSOR INDICATOR

BRAND: Communica

R 795.00_{(inc VAT)}
R 691.30_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Panel Meters

Category: Digital Panel Meters

This Multi-functional Sensor Meter Can Measure A Current Or Voltage Signal Input In The Range Of 0-75MV/4-20MA/0-10V. It Can Be Used With A Transmitter, Pressure Sensor, Liquid Level Sensor, Weighing Sensor And So On. Power Supply: 220V AC

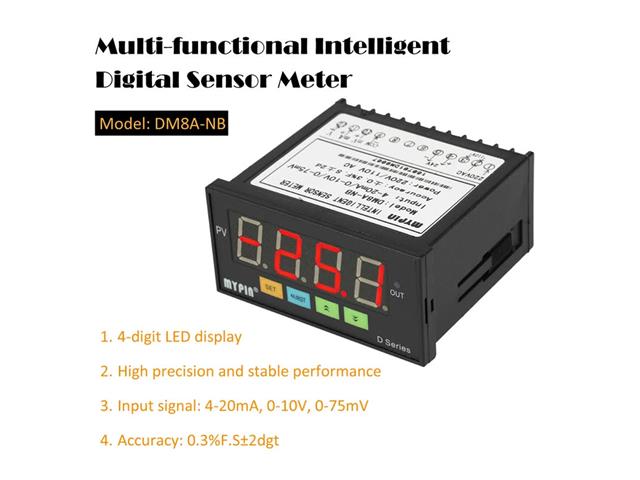

Multi-functional Sensor Meter

Overview

The instrument can measure any range of Current or Voltage signal input. The user can select data remained or peak value remained. The instrument can be used with 2 wire transmitter, pressure sensor, 4 wire weight sensor and so on. For nonlinear input, the instrument can process for 20 stages.

Specifications

Input Types

Current Input - mA

Range: 0~1mA. 0~10mA. 4~20mA
Input impedance: ≤150Ω
Factory setting: 4~20mA

Voltage Input - V(AV/DV)

Range: 0~5V. 0~10V. 0~500V
Input impedance: ≤200KΩ
Factory setting: DC 0~10V

Millivolt Input - mV

Range: 0~10mV. ±100mV
Input impedance: ≤ 2MΩ
Factory setting: 0~75mV

Resistance Input, Rt, Pt & Tc

Rt 0~400Ω, 0~10K, Cu50 Cu100-50~150°C
Pt Range: -200~650°C
Tc(R S J E K T B) Range: 0-1800°C

Downloads

User Manual - BDD UNIVERSAL SENSOR INDICATOR

Additional Information

Device	Meter
Type	Multi-functional \| Sensor

The BDD Universal Sensor Indicator is your go-to solution for precise measurements of current and voltage signals. With versatile compatibility for various sensors, it ensures accurate data tracking and peak value retention, enhancing your monitoring capabilities. Elevate your performance with this multi-functional meter designed for reliability and ease of use.
