CMU REX-C100 DIG TEM CONT K-TYPE

Name: CMU REX-C100 DIG TEM CONT K-TYPE - Communica [Part No: CMU REX-C100 DIG TEM CONT K-TYPE]
Brand: Communica
SKU: CMU REX-C100 DIG TEM CONT K-TYPE
Price: 269.57 ZAR
Availability: OutOfStock

SKU: CMU REX-C100 DIG TEM CONT K-TYPE

BRAND: Communica

Sold Out
R 310.01_{(inc VAT)}
R 269.57_{(ex VAT)}

Collections: Test & Measurement

Type: Environmental Test Equipment

Category: Temperature Controllers

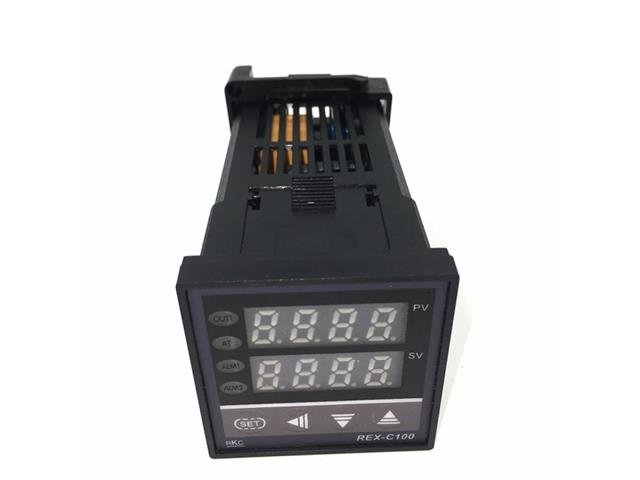

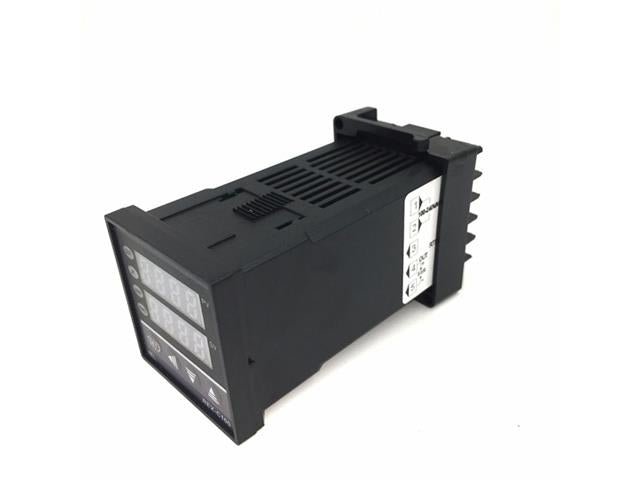

REX-C100 110-240V Digital PID Temperature Controller features a K-type Input and SSR Output. Two rows of 4-Digit Display allow user to have a clear view.( can be used with CMU SOLID STATE RELAY 3-32VDC 40A and HKD K-TYPE THERMOCOUPLE 0-600C

Digital Temperature Controller

Features

Measuring accuracy : ±0.5%FS
Cold-end compensation tolerance : ±2℃ can be modified by software in 0~50℃
Resolution : 14 bit
Sampling cycle : 0.5 Sec
Power AC : 110-240V 50/60HZ
Type : Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control : including ON/OFF, step-type PID and continuous PID
Function : Self-tuning control
Relay output : contact capacity 250V AC 3A (resistive load)
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 400℃
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50℃
Environment with no corrosive gas : 30~85% RH

Downloads

User Manual - CMU REX-C100 PID DIG TEMP CONT

Additional Information

Device	Temperature Controller
Type	Digital
