Overview

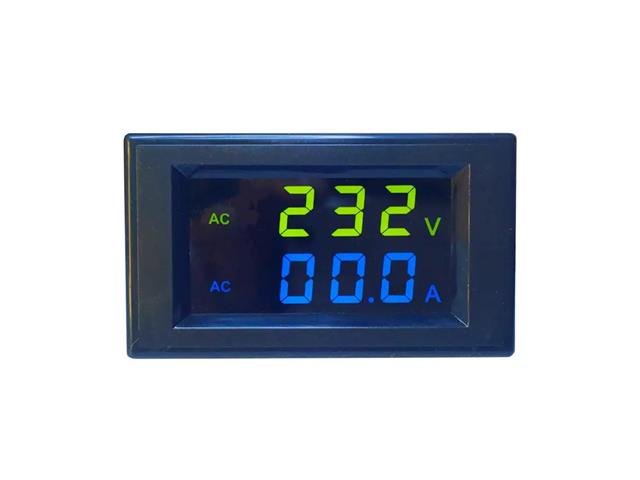

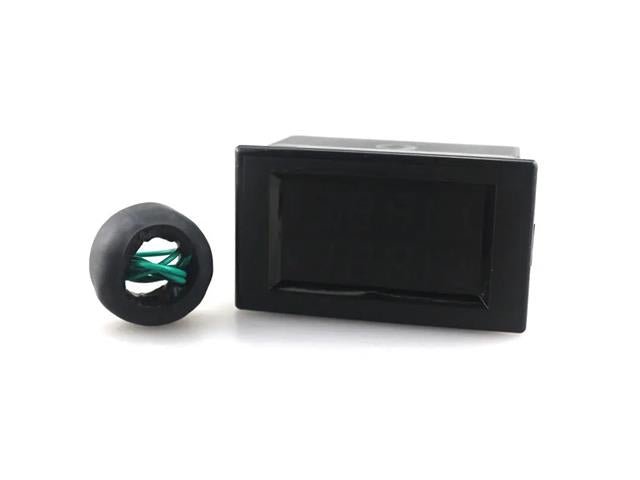

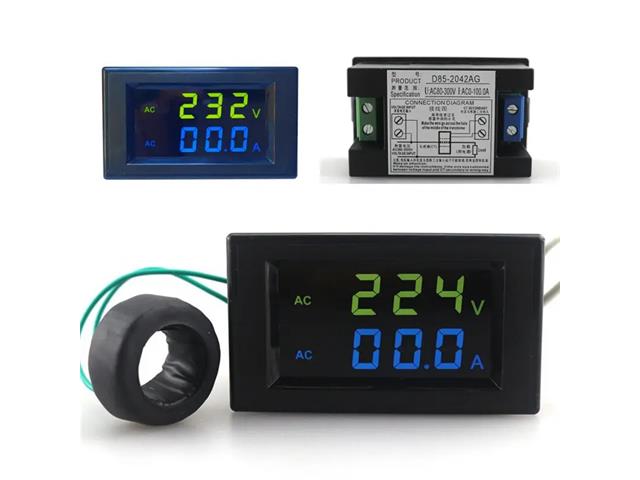

The digital AC voltage meter can simultaneously display the AC voltage and AC current. And the meter adopts colorful LCD display to show the measurement result: the yellow display measuring voltage and the blue display measuring current. And the meter needs noincreasing working power and AC transformer. ( the meter is equipped with the precise miniature transformer, so it does not need to purchase separately)
Specifications
- Measurement Accuracy: 1% ± 2 digits
- Display Screen:
- Voltage Display: yellow LCD
- Current Display: blue LCD
- Measuring range:
- AC Voltage: AC 80.0-300V, AC 200-450V
- AC current: AC 0-100.0 A, AC 0-199.9 A
- ( You can select the appropriate voltage and current range as your needs )
- Measurement Speed: about 2 times per second

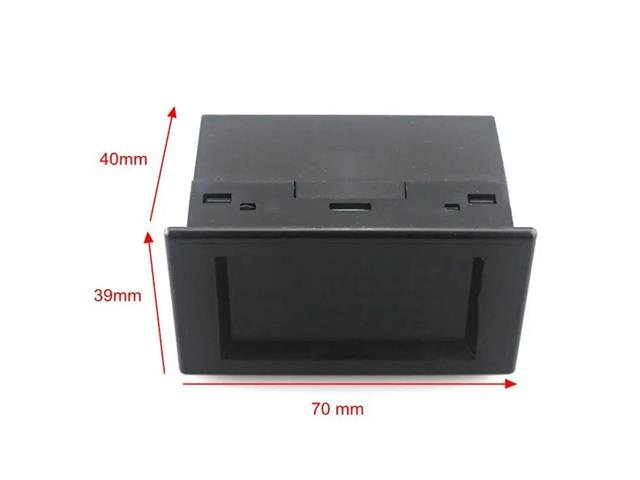

- External Dimensions: about 70*39*40mm / 2.76*1.54*1.57 inches
- Installation Size: about 68*38 mm/2.68*1.50 inches
Additional Information
| Device |
Panel Meter |
| Type |
Digital Voltmeter | Ammeter | Amp Volt |
