DPM/BMT DIG DUAL 100V 100A RD/BU

Name: DPM/BMT DIG DUAL 100V 100A RD/BU - Communica [Part No: DPM/BMT DIG DUAL 100V 100A RD/BU]
Brand: Communica
SKU: DPM/BMT DIG DUAL 100V 100A RD/BU
Price: 138.26 ZAR
Availability: InStock
Rating: 4.00 (1 reviews)

SKU: DPM/BMT DIG DUAL 100V 100A RD/BU

BRAND: Communica

R 159.00_{(inc VAT)}
R 138.26_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Panel Meters

Category: Digital Panel Meters

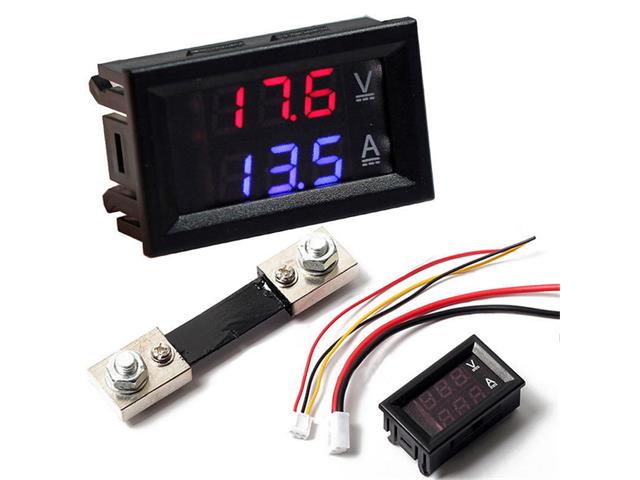

Dual Digital DC AMP/Volt Panel Meter with Shunt. 0-100A Red/0-100V Blue-3 Digit X2 0.28IN LED Display. Power Supply: 4.5V-30V. OD 48x29x21mm

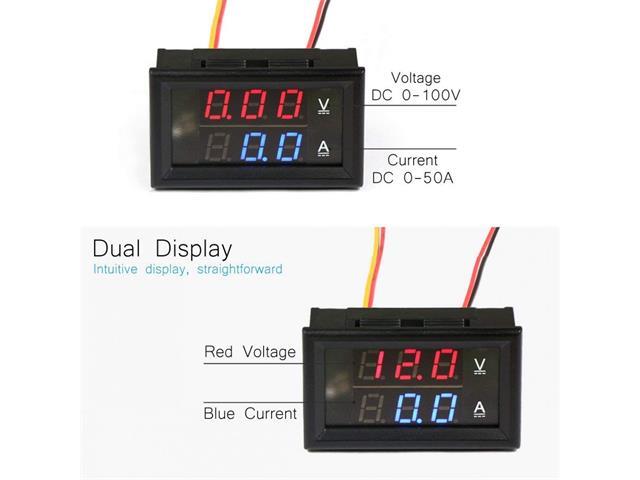

Dual Digital DC AMP/Volt Panel Meter

Specifications

Display : 0.28 inch LED Red and Blue colour
Power Supply : 4.5V - 30V
Operating Temperature : -10°C ~ 65°C
Operating Humidity : 10 ~ 80%
Working Air Pressure : 80 ~ 106kPa
Testing current : 0-100A
Wiring
Thick Cable

Black line : COM, common measuring
Red line : power supply+
Yellow line : IN+, current input+

Thin cable (4.5V - 30V)

Black line : DC Input-
Red line : DC input+

Work Current : <60mA
Accuracy : 1%(±1)
Refresh rate : ≥ 500mS/times
Measure range : DC0-100V

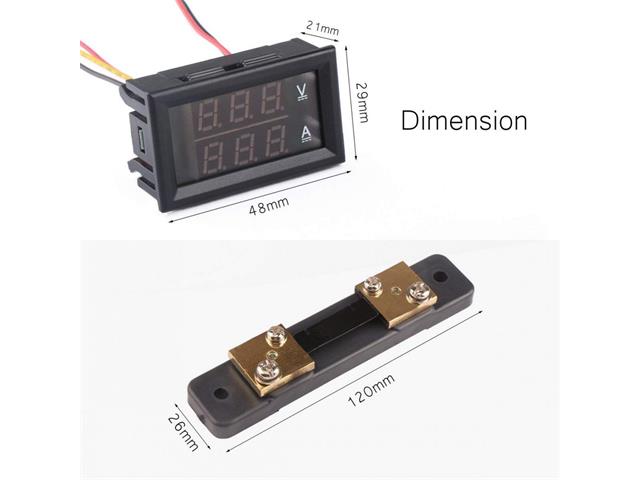

Dimension : 48mm x 29mm x 21mm

Downloads

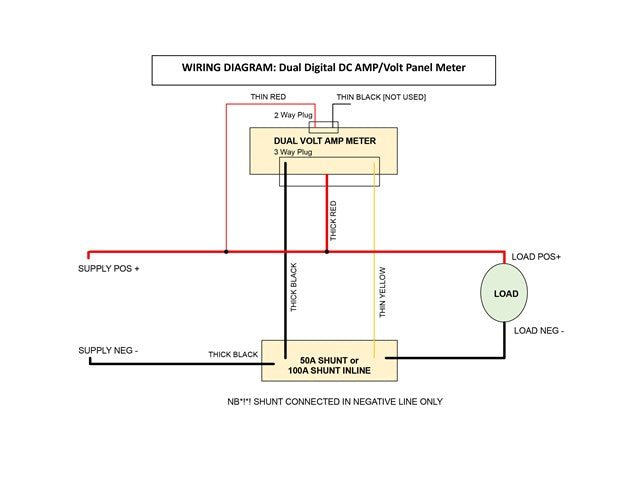

Wiring Diagram - DIGITAL DUAL 100V 100A RD/BU

Additional Information

Device	Panel Meter
Type	Dual \| Digital \| DC \| AMP/Volt

Elevate your measurements with the DPM/BMT DIG DUAL 100V 100A RD/BU dual digital panel meter. Featuring a clear 0.28-inch LED display, this versatile device accurately monitors both DC amps and volts, ensuring optimal performance for your projects. With a compact design and wide operating range, it’s perfect for any electrical application, providing reliable data at a glance.
