Fluke 705 Volt/mA Loop Calibrator
705 Volt/mA Loop Calibrator
Overview

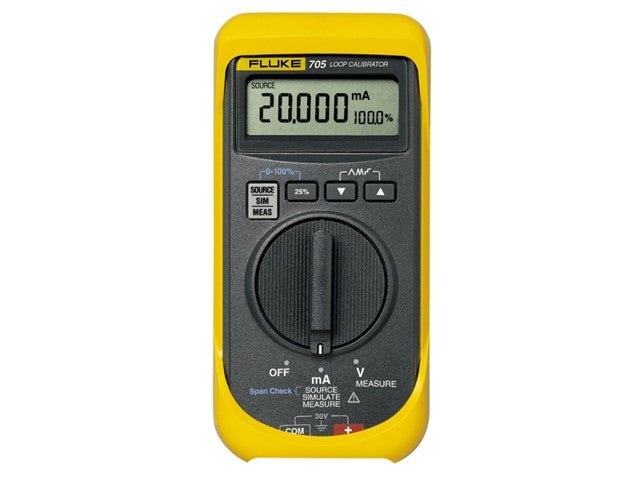

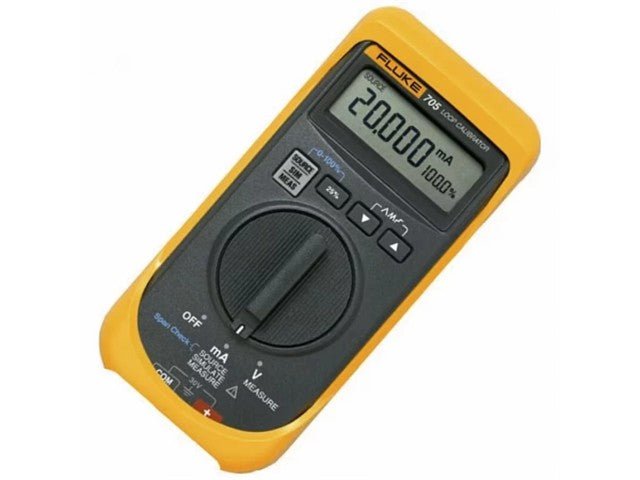

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:
- mA sourcing, simulation and measurement
- 0.02% accuracy and 0.001 mA resolution
- Simultaneous mA and % of span display
- Selectable step or ramp outputs
- 24 V Loop supply with mA measure
- 0-28 VDC measurement to check Loop Voltage
- Easy battery exchange without opening the case
- Includes “span check” for fast confirmation of zero and span.
- Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
- Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
- Runs on a single 9 V battery that is easily changed without breaking the calibration seal
- Offers 0 - 20 mA or 4 - 20 mA default start up modes

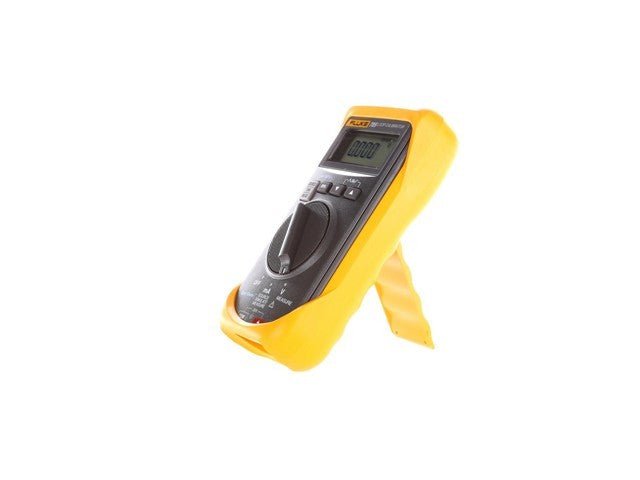

- Comes with a protective yellow holster with test lead storage and a three year warranty
Features
- Powerful loop calibrator that provides a very cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
- Provides simultaneous mA and % readout for quick, easy interpretation of readings.
- Delivers mA accuracy of 0.02%
- Features push button 25% steps for fast, easy linearity checks
Specifications
| Specifications |
| Current measurement |
Range |
0 to 24 mA |
| Resolution |
0.001 mA |
| Accuracy |
0.02% Rdg + 2 LSD |
| Current sourcing |
Range |
0 to 20 mA or 4 to 20 mA |
| Accuracy |
0.025% Rdg + 2 LSD |
| Drive capability |
1000 Ω @ 24 mA |
| Current simulation |
Range |
0 to 20 mA or 4 to 20 mA |
| Accuracy |
0.025% Rdg + 2 LSD |
| Ext. loop voltage requirement |
12-30 V |
| Loop power |
While measuring mA, 24 V |
| Voltage measurement |
Range |
0 to 28 V DC |
| Resolution |
1 mV |
| Accuracy |
0.025% Rdg + 2 LSD |
| Environmental Specifications |
| Operating temperature |
-10°C to 55°C |
| Storage temperature |
-40°C to 60°C |
| Humidity (without condensation) |
0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C) |
| Temperature coefficient |
-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C |
| Safety Specifications |
| Safety |
CSA C22.2 No. 1010.1:1992 |
| EMC |
EN50082-1:1992 and EN55022:1994 Class B |
| Maximum voltage |
30 V |
| Mechanical and General Specifications |
| Size |
152 x 70 x 41 mm |
| Weight |
340 g |
| Batteries |
One 9 V battery |
| Warranty |
Three years |
| Shock and vibration |
per MIL-T-28800 for a Class 2 Instrument |
| Display current and % of span |
Yes |
| Auto step, auto ramp |
Yes |
| Span check |
Yes |
Downloads
Additional Information
| Device |
Loop Calibrator |
| Type |
705 Volt/mA |
Experience precision with the FLUKE 705 Volt/mA Loop Calibrator, designed for seamless calibration, repair, and maintenance of milliamp loops. With 0.02% accuracy and user-friendly controls, you’ll ensure optimal performance and reliability in your systems. Its compact design and built-in 24V loop supply simplify your workflow, making it the ultimate tool for professionals seeking efficiency and accuracy.
