MAJ MT1877
SKU: MAJ MT1877
BRAND: Major Tech
R 2,459.85 (inc VAT) R 2,139.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

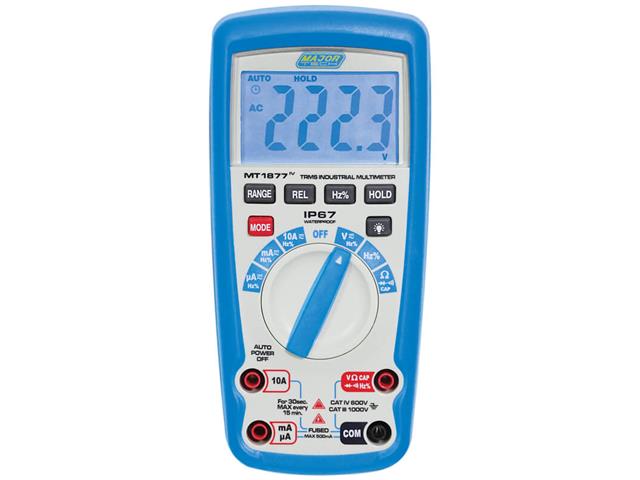

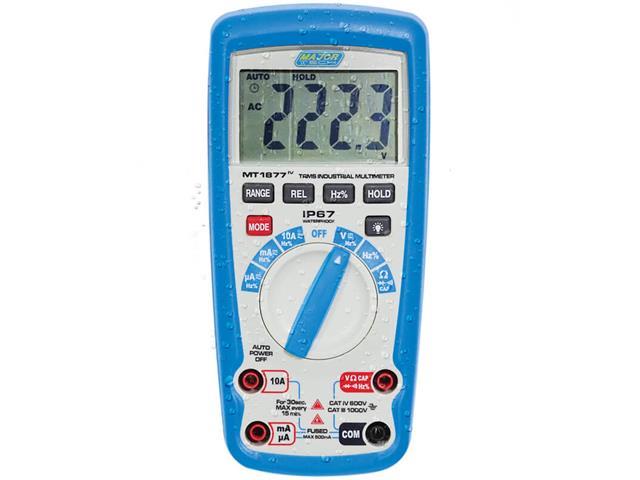

IP67 Industrial Multimeter
IP67 Industrial Multimeter
Features
IP67 Dust & Waterproof with O-Ring sealed casing

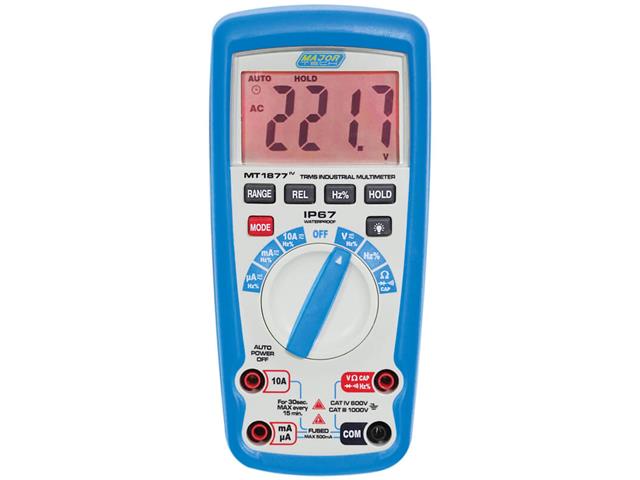

NCV detection above 110V AC, LCD turns red to indicate presence of voltage
Auto Range with Manual Override
Measures Frequency range on Electronic and Electrical Circuits
Capacitance to 100mF
Measures AC and DC Voltage to 1000V
Relative Mode
Data Hold / Duty Cycle
4000 Count LCD
Full Ranges Protection
Auto Power Off
Overmould rubber housing
Integrated Test Lead Holder
Blue backlight for dimly lit areas
Accessories:
9V Battery
Test Leads
Instruction Manual
Specifications
DC Voltage : 400.0mV – 1000V
DC Voltage Resolution : 1V
DC Voltage accuracy 0.5% + 5 Digits
AC Voltage : 400mV – 1000V
AC Voltage resolution : 1V
AC voltage accuracy : ±(0.8%+ 8 Digits)
DC Current : 400uA – 10A
DC Current accuracy : ±(1.0% + 3 Digits)
DC Current resolution : 10mA
AC Current : 400uA – 10A
AC current resolution : 10mA
AC Current accuracy : ±(1.5% + 3 Digits)
Resistance : 400.0Ω – 40.00MΩ
Resistance accuracy : ±(0.8% +2)
Resistance resolution : 10kΩ
Capacitance : 99.9nF – 99.99mF
Capacitance resolution : 0.01mF
Capacitance accuracy : ±(4.0% + 5 Digits)
Frequency : 9.999Hz – 10MHz
Frequency resolution : 10KHz
Frequency accuracy : ±(1.0% +5)
Duty Cycle : 0.1% – 99.9%
Duty Cycle resolution : 0.1%
Duty Cycle accuracy : MS
Digital Display : 4000
Continuity Test : Audible signal if the resistance is approx. 50Ω or less
Diode Test : est current 1mA typical, open circuit voltage 3.2V DC typical
Voltage : Detection above 110V AC, LCD display turns red
Input Impedance : ˃10MΩ VDC & ˃9MΩ VAC
Data Hold : Yes
Back Light : Yes
Enclosure : IP67 Dust & Waterproof Double Moulded
Power source : 9V Battery
Dimensions : 182x 82 x 55mm
Weight : 375g
Safety Specs : IEC61010-1 CatIV 600V
Downloads
Additional Information
Device
Multimeter
Type
IP67 | Industrial
Discover the MAJ MT1877 IP67 Industrial Multimeter, engineered for durability and precision. With waterproof protection and features like NCV detection and auto range, this multimeter ensures accurate measurements in any environment. Perfect for professionals, it offers vital data at your fingertips, enhancing your efficiency and safety on the job.
