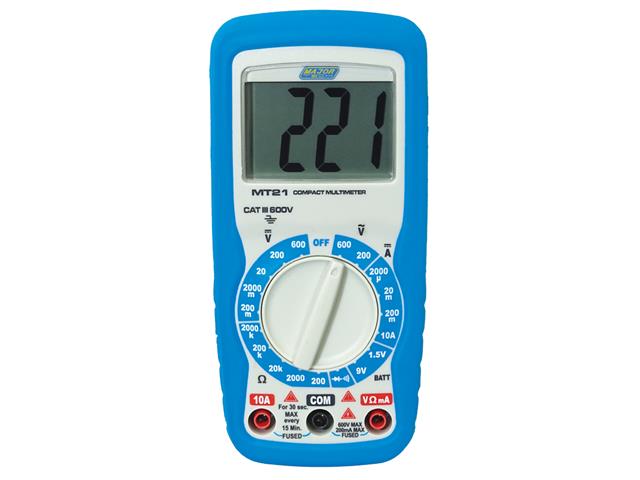

MAJ MT21

SKU: MAJ MT21

BRAND: Major Tech


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
DMM Data Hold AC/DC 600V CAT 111

DMM Data Hold AC/DC 600V CAT 111

Overview

The MT21 is a 600 AC/DC Voltage Compact Multimeter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. It is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT21 is a basic 2000 count multimeter and is designed to efficiently support the first level electronic and electrical trouble shooting. The meter measures AC and DC voltage to 600V, resistance to 2000 ohms, and DC current to 10A, plus has a diode test function and a continuity buzzer. An added function of the MT21 is the battery test ranges, which test 1,5V and 9V batteries with a load.

Features

  • 600V AC/DC Voltage
  • 10A DC Current
  • Resistance to 2000k
  • Battery Test 1.5V & 9V Batteries
  • 2000 Count LCD Display
  • Overmould Rubber Housing
  • Integrated Test Lead Holder

Accessories:

  • 9V Battery
  • Test Leads
  • Instruction Manual

Specifications

Function Range Resolution Accuracy
DC voltage 200mV - 600V 0.1mV ± (0.8% + 2 Digits)
AC voltage 200V - 600V 0.1mV ± (1.2% + 10 Digits)
DC Current 2000μA - 10A 1mA ± (2.5% + 5 Digits)
Resistance 200Ω - 2000kΩ 0.1Ω ± (1.0% + 2 Digits)
Pulse Width    10mV ± (1.0% + 2 Digits)
AC Bandwidth  45Hz to 450Hz
Digital display 2000
Continuity Yes
Diode test Yes
Overrange indication Yes
Battery test 9V, 1.5V
Input impedance >1MΩ
Enclosure Double moulded
Low battery indication Yes
Power source 6LF22
Weight 342g
Dimensions 187 x 81 x 51mm
Safety Specs IEC61010-1 CAT III 600V

Downloads

Additional Information

Group Multimeters
Keywords major tech, MT21, digital multimeter, multimeter, Compact
Sub Group Digital Multimeters
Device Multimeter
Type DMM | Data Hold
Discover the MAJ MT21 Compact Digital Multimeter, designed for professionals and DIY enthusiasts alike. With 600V AC/DC voltage measurement, 10A DC current capability, and a user-friendly LCD display, it's perfect for efficient electrical troubleshooting. Its durable rubber housing ensures reliability in tough environments, making it an essential tool for electricians and technicians. Get accurate readings and enhanced functionality with the MAJ MT21 today!
