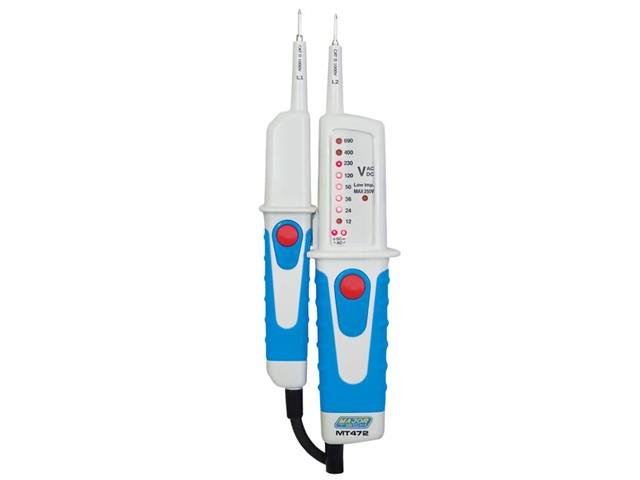

The MT472 is a 690V AC/DC Voltage Tester and is a basic voltage tester designed to meet electrician’s requirements for the measurement of AC and DC voltage and continuity. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT472 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The MT472 meets the CAT IV 600V and CAT III 1000V safety standards.
Features
AC & DC Voltage detection from 12V to 690V
LED Indication
Double Injection IP64 housing
Low Impedance test
Built-in Flashlight
Polarity Detection
Voltage function operates without battery
Accessories:
Instruction manual
Test probe covers for CATIV 600V
Specifications
DC Voltage
12-690V
DC Voltage accuracy
±(30%)
AC Voltage
12-690V
AC voltage accuracy
±(30%)
RCD Test
10mA and 30mA
Continuity
Yes
Continutity resolution
greater than/equal to 400kΩ
AC Bandwidth
50Hz to 60Hz
Digital Display
LED Indication
Polarity Indication
Yes
Low Input impedance
greater than/equal to 6kΩ
Flash Light
Yes
Enclosure
Double injection IP64
Power source
2 x R03 (not supplied)
Weight
255g
Dimensions
150 x 70 x 48mm
Additional Information
Keywords
major tech, MT472, votage detector, votage, detector
Device
Tester
Type
LED | Voltage
Discover the MAJ MT472 LED Voltage Tester, your essential tool for safely measuring AC and DC voltage up to 690V. With easy-to-read LED indicators, automatic activation, and built-in flashlight, this compact tester enhances your efficiency and ensures precise readings. Designed for electricians, its low impedance test feature and IP64 housing provide durability and reliability, making it a must-have for any toolkit.
