Digital Insulation Testers • 250V-500V-1000V Voltage Ranges
Insulation Tester
Overview

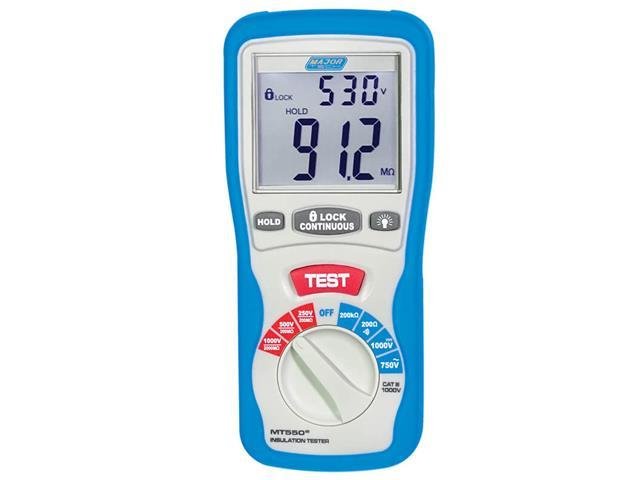

The MT550 is a 1000V Digital Insulation Tester easy-to-use handheld meter and has three test voltage ranges 250V, 500V and 1000V together with two continuity ranges. Whilst doing the insulation test, the large LCD will indicate the insulation resistance together with the actual output voltage. Once the test is complete the circuit under test will be automatically discharged. The MT550 features an AC and DC voltage ranges, battery voltage indication, resistance and a continuity buzzer. If AC voltage is detected, the LCD will display the actual voltage to the user except in the off position.
Features
Three test ranges 250V-500V-1000V
750V AC voltage and 1000V DC voltage ranges
Live Circuit warning and buzzer
Data Hold function
1mA output current on insulation test
200mA short circuit on continuity range
Continuity Buzzer
Automatic discharge after test
Lock down Test Button for continuous use

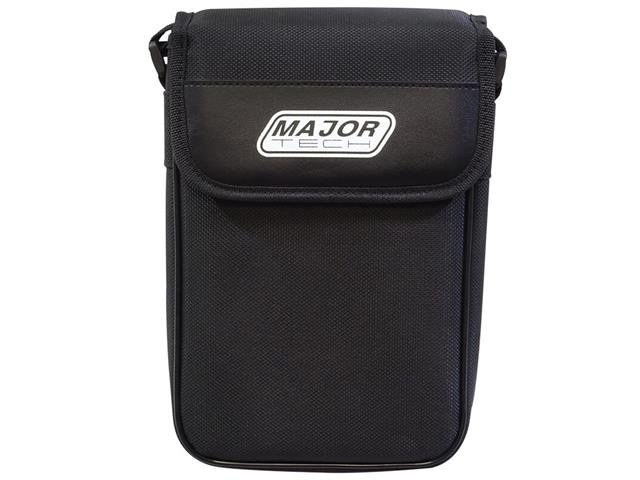

Hands free strap and magnet supplied as standard accessories
major tech, MT550, insulation tester, insulation, tester, digital
Device
Insulation Tester
Type
Digital
Experience precision with the MAJ MT550 Digital Insulation Tester, featuring 250V, 500V, and 1000V ranges for reliable insulation measurements. Its user-friendly design, large LCD display, and automatic discharge ensure safety and efficiency. Perfect for professionals, this durable tester delivers accurate results, making it an essential tool for electrical diagnostics.
