Clamp Meter AC 200A 1000V AC/DC, True RMS, 6000 Count, Res:60MΩ, Cap: 4000uF, Diode Test, CAT IV 600V and CAT III 1000V, {230x44x66mm} 259g
Clamp Meter AC 200A 1000V AC/DC
Overview

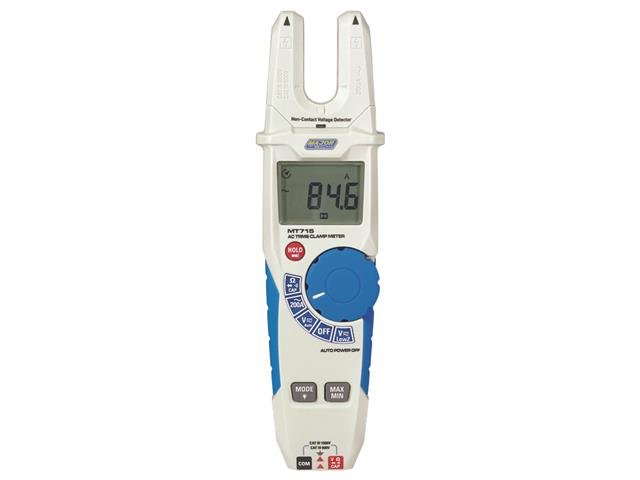

The MT715 is a 200A AC Open Jaw TRMS Clamp Meter with indication on a large backlit negative LCD display, with a clamp jaw opening of 16mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. The meter measures 1000V AC/DC, capacitance and resistance measurements, plus a Min and Max mode. The Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages, and has features of Non-Contact Voltage detection, diode test function, a continuity buzzer and a built-in flashlight. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Features
- 6000 count negative LCD display

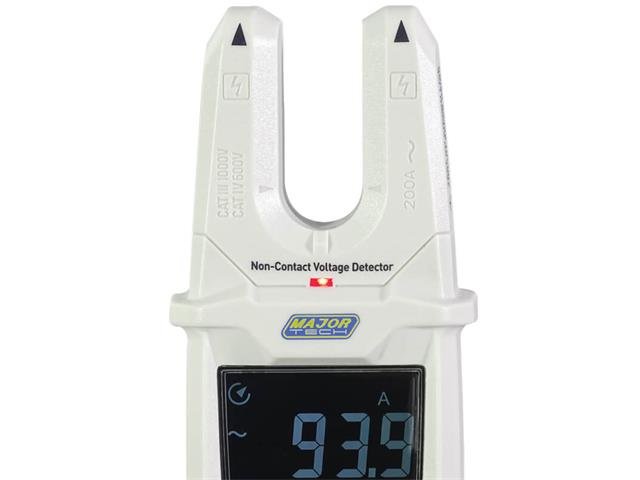

- Open Jaw Sensor
- Ø16mm Cable Clamp size
- Measures DC voltage and AC voltage up to 1000V
- Capacitance to 4000μF
- Temperature measurement -40⁰C to 1000⁰C
- NCV – Non-Contact Voltage Detector
- Low input impedance prevents false readings due to “Ghost” Voltage (LoZ)

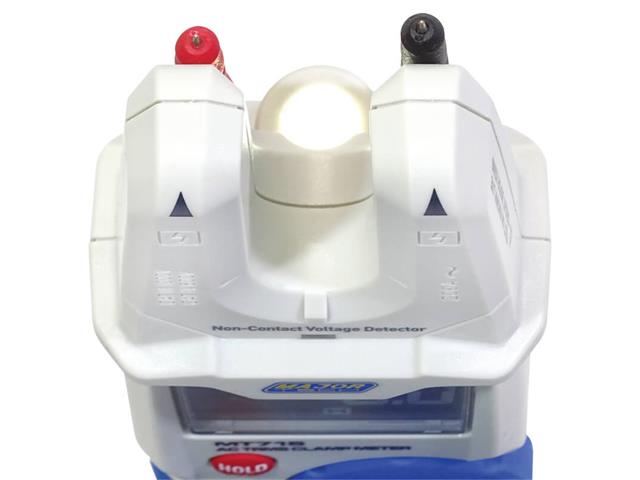

- Built-In Flashlight
- Continuity buzzer and Diode Test
- Min/Max and Data Hold function
- Auto Power Off
Specifications
| Function |
Range |
Resolution |
Accuracy |
| AC Current |
200A |
100mA |
±(3% + 5 Digits) |
| DC Voltage |
6.000V – 1000V |
1mV |
±(1.0% + 2 Digits) |
| AC Voltage |
6.000V – 1000V |
1mV |
±(1.2% + 2 Digits) |
| Resistance |
600.0Ω– 60.00MΩ |
0.1Ω |
±(1.5% + 4 Digits) |
| Capacitance |
60.00nF – 4mF |
0.01nF |
±(3.0% + 5 Digits) |
| True RMS Measurements |
ACV, ACA |
| AC Bandwidth |
2KHz |
| Digital Display |
6000 |
| Non-Contact Voltage (NCV) |
Yes |
| Overrange Indication |
Yes |
| Continuity |
Yes |
| Diode Test |
Yes |
| Jaw Size |
16mm Open Jaw |
| Input Impedance |
>10MΩ DCV & >10MΩ VAC |
| Min Max |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
Double injection moulding |
| Low Battery Indication |
Yes |
| Batteries |
2 x AAA |
| Weight |
259g |
| Dimensions |
230 x 44 x 66mm |
| Safety Specs |
IEC61010-1 CAT IV 600V |
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
AC | 200A | 1000V | AC/DC |
