Digital Handheld Light Meter
Digital Handheld Light Meter
Overview

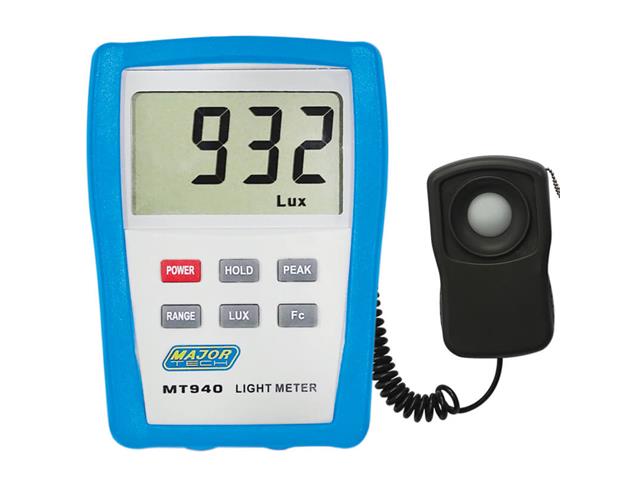

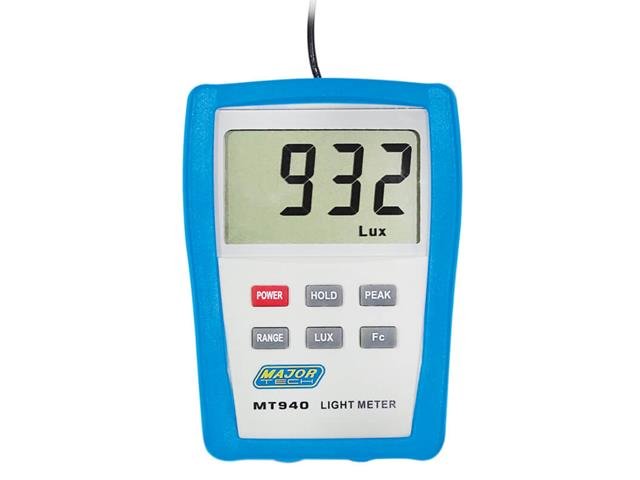

The MT940 is a handheld Light Meter that provides accurate display of light levels in terms of Foot Candle (FC) or LUX over a wide range. This versatile meter offers Peak Hold and Data Hold functions and can measure light up to 20,000 Lux or FC with an accuracy of 0.01Lux/FC. The light sensor is connected through an extension cable to the meter, providing fast measurements in multiple environments. The readings are displayed on a large and clear LCD display with range annunciations to assist the user. This is an essential tool for Designers or Quality Assurance Managers to troubleshoot or check lighting levels in a variety of situations from office to factory areas where health and safety is a requirement.
Features
- Check light levels in a wide variety of situations
- Accurate test with fast response and auto zero adjustment
- 4 measuring ranges for Lux and Foot Candle
- Lux range from 200 Lux to 200,000 Lux
- Foot Candle range from 20fc to 20,000fc
- Measurement rate 2 times per second
- Peak Hold and Data Hold functions
- Symbol and unit display – easy to read
- Overrange indication
- Auto Power Off
Accessories:

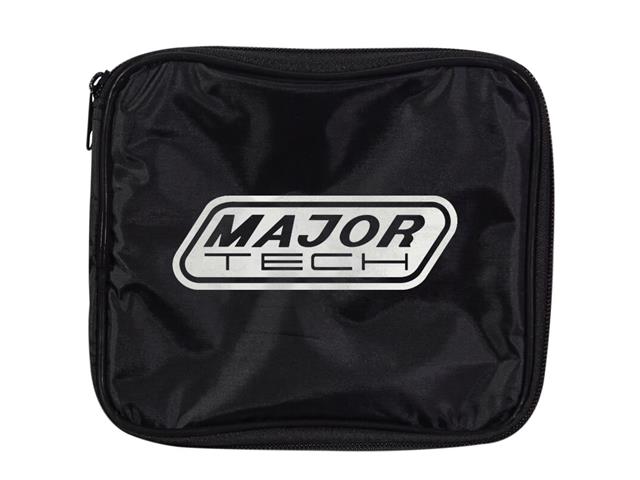

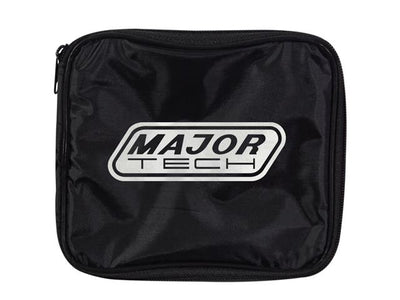

- Carrying Case
- 9V Battery
- Instruction Manual
Specifications
| Range |
20 to 20 000FC, 200 to 200 000 Lux
|
| Resolution |
0.1 Lux
|
| Over-range indication |
Yes
|
| Peak hold |
Yes
|
| Photo detector |
Photo diode with filter
|
| Sample Rate |
2 times per second
|
| Data Hold |
Yes
|
| Enclosure |
Moulded casing
|
| Low battery indication |
Yes
|
| Battery |
1 x 9V
|
| Weight |
300g
|
| Dimensions |
Meter: 130 x 95 x 30mm, Photo detector: 100 x 60 x 27mm
|
Downloads
Additional Information
| Device |
Light Meter |
| Type |
Digital | Handheld |
Experience precision lighting measurement with the MAJ MT940 Digital Handheld Light Meter. Accurately gauge light levels up to 20,000 Lux or Foot Candle across various environments, making it an essential tool for designers and quality assurance managers. With features like Peak Hold, Data Hold, and a clear LCD display, ensure your spaces meet health and safety standards effortlessly.
