Multifunction Process Calibrator, Active/Passive Current O/P Range:0~24mA, Max Load:750Ω, Voltage O/P Range:0~24V, Max Current 30mA, PWM O/P (Frequency) Range: 0~9999Hz, 240x320 TFT Colour LCD Screen, Built-in lithium Rechargeable 3000mAh Battery

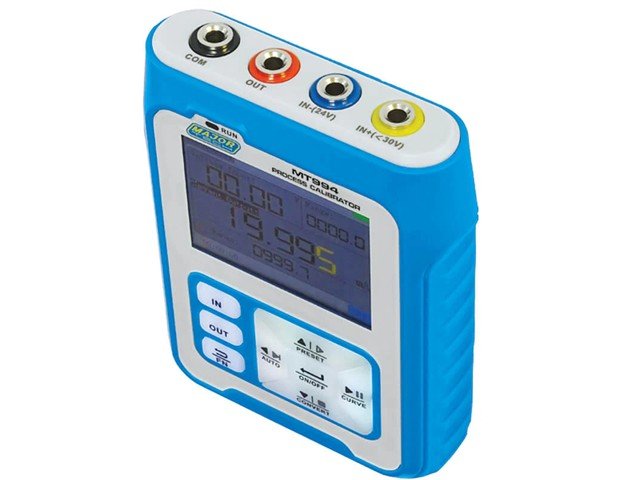

Multifunction Process Calibrator
Features
Active current output: range: 0~24mA
Maximum load: 750Ω
Passive current output: range: 0-24 mA
External power supply up to 30V
Voltage output: range: 0-24 V
Maximum current 30mA
24V voltage output
Drive current: 24mA
In addition, there is XMT Passive Current Signal, plus RTD simulation with Pt100, cu50 thermal resistance and 10 kinds of thermocouple
Current input measurement: range: 0-24 mA Input impedance:100Ω
Voltage input measurement: range: 0-30 V Input impedance: 2MΩ
Real-time Curve: The changing trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.
It can also automatically adjust the display curve within the range of maximum and minimum values in a certain period
PWM output (frequency): Range: 0-9999Hz

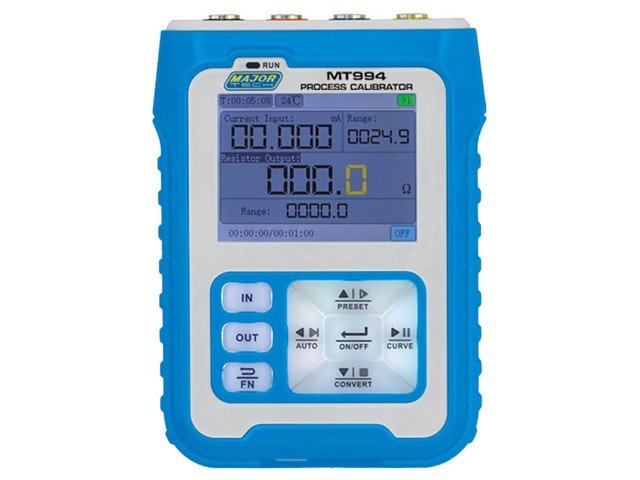

The high-definition 240*320 TFT colour LCD screen ensures readings are easily viewed
Built-in lithium rechargeable 3000mAh battery power supply with standby time of around 26 hours; the using time varies, based on the usage (It can be 8-10 hours with 20mA continuous output)
Experience precision and versatility with the MAJ MT994 Multifunction Process Calibrator. Designed for accuracy in active and passive current output, it features a vibrant 240x320 TFT LCD screen and a long-lasting rechargeable battery. Whether for voltage, frequency, or thermocouple testing, this calibrator ensures reliable performance, making it an essential tool for professionals in any technical field.
