Compact Clamp Meter Digital 600V AC/DC 800A AC, TRUE RMS, Resistance:40MΩ, FREQ:10MHz, Capacitance:40mF, 4000 Count, TEMP:-40°C~1000°C, Auto PWR OFF, JAW SIZE:28mm, NCV, Continuity & Buzzer Test, Data Hold, 180g
600A AC/DC TRMS Clamp Meter
Overview

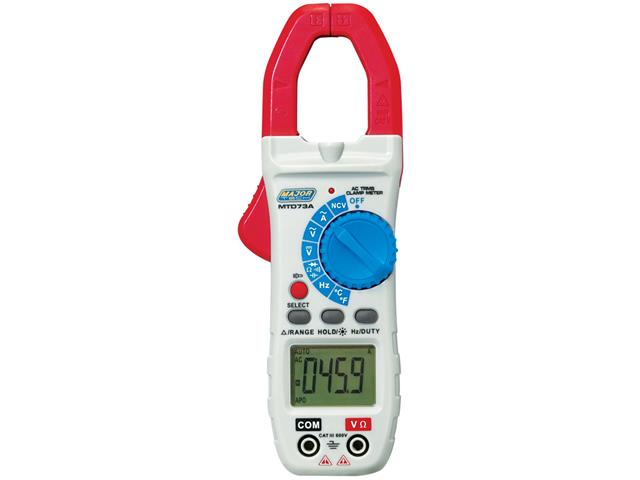

The MTD73A 600A AC Clamp Meter is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy features include a backlit LCD display and flashlight for working in dimly lit areas. The NCV Non-Contact Voltage detector is useful for a quick check to see if voltage is present on circuit under test. Measures 0.001A to 600A AC, 0.1mV to 600V AC/DC, Temperature, Capacitance, Frequency, Resistance, Continuity buzzer and Diode Test. 28mm Jaw opening and accessories include test leads, temperature air probes and carrying case.
Accessories
- Carrying Case
- Test Leads
- Air Temperature Probes
- Instruction Manual
Features
- Measures AC Current to 800A
- Measures AC & DC Voltage to 600V
- Temperature measurement -40°C to 1000°C
- Resistance to 40MΩ
- Frequency to 10MHz
- Capacitance to 40mF
- 28mm conductor size
- 4000 count LCD display with backlight
- Continuity and buzzer test
- Data hold and Duty Cycle function
- Non-Contact Voltage
- Auto power off
- Low battery indication
Accessories
- Carrying Case
- Test Leads
- Air Temperature Probes
- Instruction Manual
Specifications
| DC Voltage |
400mV – 4V – 40V – 400V – 600V
|
| DC Voltage accuracy |
±(0.5% + 5d)
|
| AC Voltage |
4V – 40V – 400V – 600V
|
| AC voltage accuracy |
±(1.0% +5)
|
| AC Current |
4A – 40A – 400A – 800A
|
| AC Current accuracy |
±(3.0% +5)
|
| Resistance |
400Ω – 4kΩ – 40kΩ – 400kΩ – 4MΩ – 40MΩ
|
| Resistance accuracy |
±(0.8% + 3d)
|
| Capacitance |
4nF – 40nF – 400nF – 4uF – 40uF – 400uF – 4mF – 40mF
|
| Capacitance accuracy |
±(2.5% + 5d)
|
| Frequency |
10Hz – 100Hz – 1kHz – 10kHz – 100kHz – 1MHz – 10MHz
|
| Frequency accuracy |
±(0.5% + 4d)
|
| Temperature |
-40 to 1000°C
|
| Temperature accuracy |
±(1.0% + 5°C)
|
| Continuity |
Buzzer sounds at approx. 50Ω
|
| Diode Test |
Test current 0.8mA, open circuit voltage 2.2V
|
| Power source |
2 x 1.5V AAA batteries
|
| Dimensions |
185 x 65 x 37mm
|
| Weight |
180g
|
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
600A | AC/DC | TRMS |
