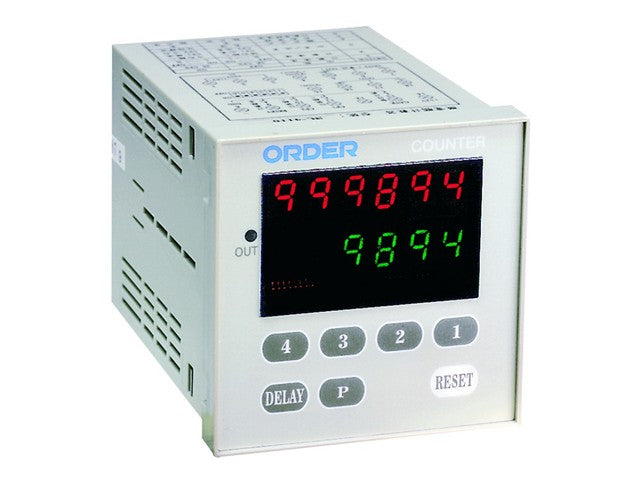

NC4116
SKU: NC4116
BRAND: Order
R 4,479.25 (inc VAT) R 3,895.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
4 Digit Counter + 6-Digit Totalizer 72x72mm 3A 250VAC
4 Digit Counter + 6-Digit Totalizer
Features
Easy-to-operate reset switches per digit (similar to DIP switches)
Multiple operation modes: output operation, auto delay reset, instant reset, manual/auto reset
Adjustable time output: 0.1–999.9 seconds (panel input)
Dual time operation ranges: base-10 (1–9999 sec.) or base-60 (99:59)
EEPROM memory retains settings for up to 10 years without battery
High-speed counting: up to 8,000 counts per second (max)
Timing pause function via GATE terminal
Digital filter for stable input signals (< 25 bps)
Large seven-segment display with color differentiation between set and count values
Membrane panel design, sealed against oil and dust
Specifications
Setting Sections Single-step setting
Time Setting Range 0–999,999 (counts or seconds)
Counting Input CP1 (addition), CP2 (subtraction) or direction input
Input Type Non-contact (NPN) or contact input; voltage range L: 0–3V, H: 0–30V
Counting Speed Non-contact: 24 Hz (fastest); Contact: 25 kHz (fastest)
Output Type Relay output (AC250V, 3A) and transistor output (DC30V, 0.5A)
Output Time Mode 0.1–999.9 sec. (panel set) or extended via DIP switch
Reset Methods External reset, panel button, auto reset after timing
Memory EEPROM (settings, counts, delays retained for 10 years)
Power Supply AC 110V / 220V; DC +12V output available
Operating Temperature -10°C to +50°C
Operating Humidity 45–85% RH
Downloads
Additional Information
Device
Counter
Type
4 Digit | 6-Digit | Totalizer
The NC4116 4 Digit Counter and 6-Digit Totalizer is your ideal solution for precise counting and timing. With easy reset switches, adjustable time outputs, and a large display, it ensures accurate tracking up to 8,000 counts per second. Its durable design and EEPROM memory retain settings for up to 10 years, making it perfect for industrial applications. Upgrade your efficiency with this reliable and user-friendly counting device!
