Compact in size, light in weight and simple in use

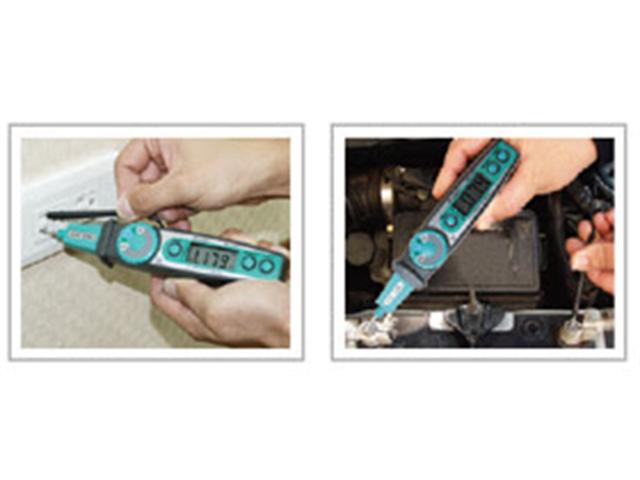

Penlight illuminates brightly the point to be measured, even in dark place
Unique protection mechanism for the test prod for safety
Auto power off function saves the battery life
Specifications
Counter : 1999 Digits : 3 1/2 Backlight : N
AC/DC Current
DC : 20mA~200mA ± (1.5% +10d)
AC : 20mA~200mA ± (3.0% +10d)
AC/DC Voltage
DC : 200mV ~ 600V ± (0.8% + 5d)
AC : 2V~200V ± (1.0% + 3d)
AC : 600V ± (1.2% + 3d)
Resistance
200Ω± (1.0% + 5d)
2KΩ~2MΩ ± (1.0 + 3d)
20MΩ± (1.2% + 5d)
Continuity test : Yes
Diode test : Yes
Auto-Range : Yes
Over range indication : Yes
Sampling rate : Approximate 3 times per sec.
Low battery indication : Yes
Fuse protection : Yes
Auto power off : Yes
Battery : 1.5Vx2 LR44 (not included)
Dimension : 205mm x 35mm x 30mm
Weight : 90g (without batteries)
Operating temperature : 0°C~40°C (<85%R.H)
Storage temperature : -10°C~50°C(<70%R.H, Remove the battery)
Additional Information
Device
Multimeter
Type
3 1/2 | Digital
The PRK MT-1630 Digital Multimeter is your essential tool for accurate measurements in a compact, lightweight design. With features like a bright penlight for low-light use, auto power off for battery efficiency, and safety mechanisms, it ensures reliable performance for both DIY enthusiasts and professionals. Upgrade your toolkit today and experience precision and convenience with every measurement!
