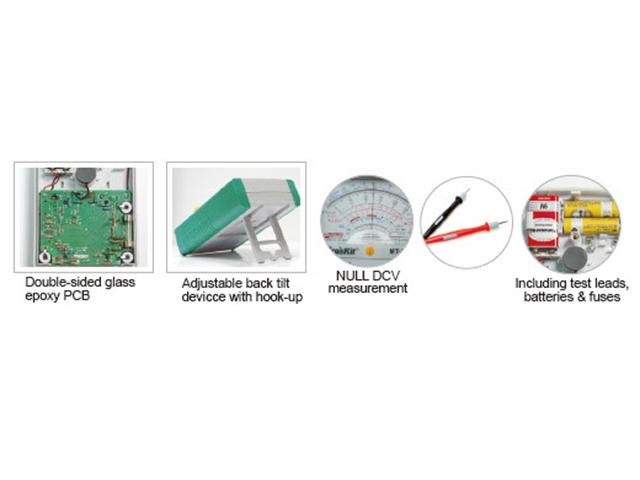

Test leads, batteries, fuse and user’s manual included
Ideal for using in the fields of lab, school,
home applications and more
Specifications
Front Panel Controls : Range selector switch with “OFF”position, 0Ω adjust knob
Power : 1.5V AA x 2pcs and 9V(NEDA1604) x 1pcs
Movement and Indicator Protection : 0.5A/250V & 10A/250V
Dimensions : 160(L) x 105(W) x 40(H) mm
Weight : 390g apporx
DCV : 0-0.1-2.5-10-50-250-1000V
Null DCV : DC±-5V, ±25V
ACV : 0-10-50-250-1000V
DCA : 0-0.05-2.5-25-250 mA, 10A
Resistance : 1 / 10 / 100 /1K / 10K?
Capacitance : 0.025-0.25-25uF(C2), 2000uF(C1)
Battery Check : 0 ~ 1.5V: GOOD - ? – BAD, 0 ~ 9V: GOOD - ? – BAD
Transistor Check : hFE: 0-1000
Decibel : -22 dB ~ + 62 dB (0dB=1mW at 600?)
Continuity Check : Beeper sounding under 200 Ohm
Additional Information
Device
Multimeter
Type
Protective | Function | Analog
Highlights
With Null DCV, Capacitance measurement

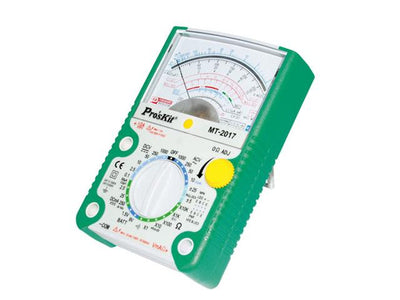

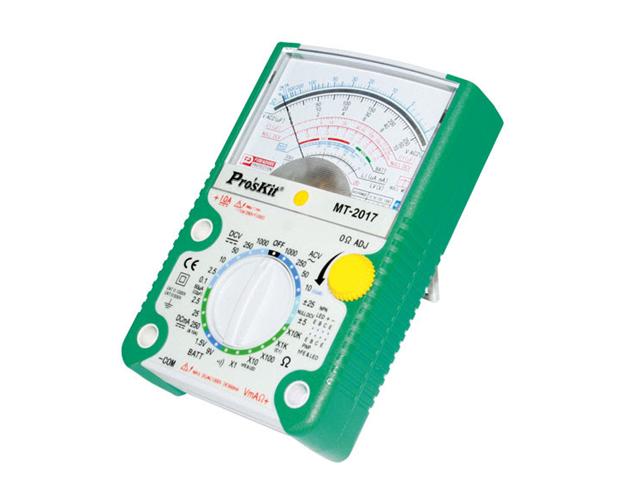

Experience precision and reliability with the PRK MT-2017N Protective Function Analog Multimeter. Designed for versatility, it measures voltage, current, and resistance while ensuring safety with overload protection. Ideal for lab, school, or home use, this durable multimeter features a clear dial and easy-to-use controls, making it the perfect tool for all your electrical testing needs.
