Overview

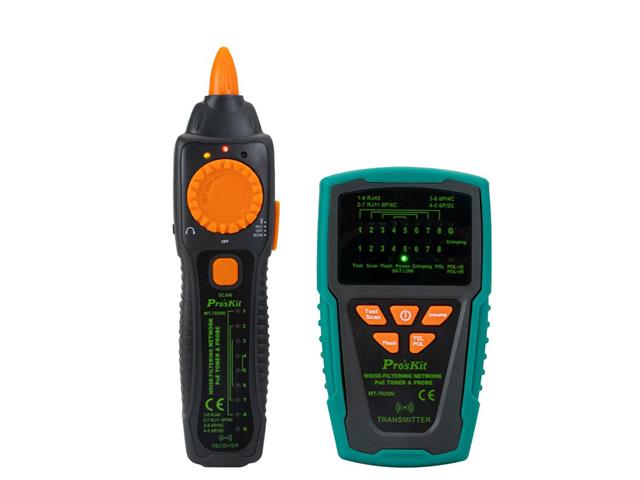

MT-7029N is the new upgrade version with a better noise filtering design. The high-frequency filter circuit technology eliminates the noise and anti-interference line tracer. Suitable for ordinary network, PoE network, UTP / STP cable search, and positioning. The new function can locate the port with flashing signals; check the crimping quality of the plug single-way; be able to trace the wire & cable mapping at the same time. Ideal for all installation & maintenance jobs.

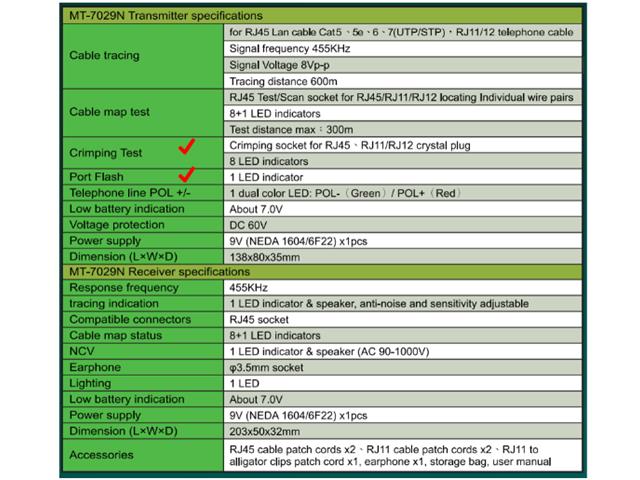

Specifications
MT-7029N Receiver
- Frequency : 455KHz
- Tracing indication : 1 LED indicator & speaker
- Cable mapping : RJ45 socket
- Cable map indication : 8+1 LED indicators
- NCV : 1 LED indicator & speaker (AC 90-1000V)
- Earphone : 3.5mm socket
- Lighting : 1 LED
- Low battery indication : About 7.0V; power indicator will flash.
- Battery : 9V (NEDA 1604/6F22) x1pcs
- Working current : Tracing <200mA; lighting<50mA
- Dimension : L203 x W50 x D32mm
- weight : 95g
- Accessories : RJ45 cable patch cords x2, RJ11 cable patch cords x2, RJ11 to alligator clips patch
- cord x1, earphone x1, storage bag, user manual
Downloads
Additional Information
Device |
Toner & Probe Kit |
Type |
Noise-Filteraing | Network | PoE |
