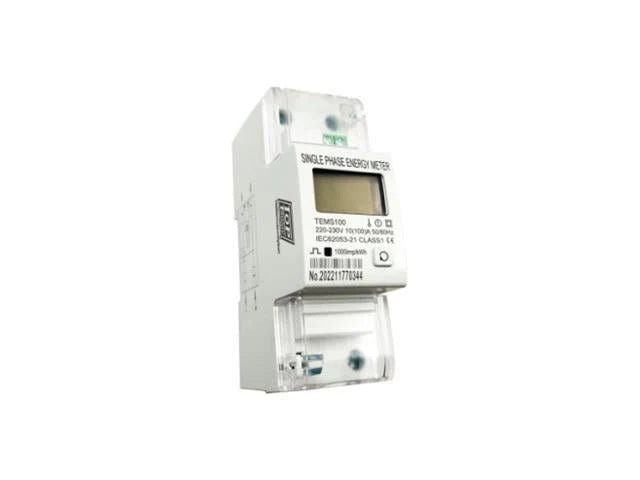

TOP TEMS100

Name: TOP TEMS100 - Communica [Part No: TOP TEMS100]
Brand: Toptronics
SKU: TOP TEMS100
Price: 543.48 ZAR
Availability: InStock

SKU: TOP TEMS100

BRAND: Toptronics

R 625.00_{(inc VAT)}
R 543.48_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Environmental Test Equipment

Category: Single Phase Energy Meter

Energy Meter Single Phase, DIN Rail Type 230V, Impulse Voltage:6kV 1.2µs Waveform, Rated Current:100A, Power Consumption:<1W/10VA, AC Voltage Withstand:4000V/25mA for 60 sec, Passive Pulse, Pulse Width is 80 ±5ms , 5-27VDC, Max Current I/P:27mA DC

Single Phase Energy Meter

Features

Designed to measure single phase two wire AC active energy
High stability and overload capability
Low power loss
Bi-directional total active energy- reverse active energy measure in the total active energy
Energy data can store in memory chip more than 15 years after power off
35mm DIN rail installation
LCD Display
Warm-up time 10s
Connection mode - direct

Specifications

DIN Rail Type : 230V
Impulse Voltage : 6kV
Waveform : 1.2µs
Rated Current : 100A
Power Consumption : <1W/10VA
AC Voltage Withstand : 4000V/25mA for 60 sec PASSIVE PULSE
Pulse Width : 80 ±5ms
Max Current I/P:27mA DC

Additional Information

Device	Energy Meter
Type	Single Phase

Optimize your energy management with the TOP TEMS100 Single Phase Energy Meter. Designed for precision, it measures active energy with high stability and low power loss, ensuring accurate readings for over 15 years. With easy DIN rail installation and a clear LCD display, this reliable meter is perfect for efficient energy monitoring in any setting.
