Digital Multimeter 1000V AC/DC 10A AC/DC, RES/CAP/FREQ/TEMP, HFE Transistor Test, Diode+Continuity Buzzer, Auto Power Off, Data Hold, Max Display 4000, CATⅡ 1000V, CATⅢ 600V, Drop Test 2M, Weight 330G
Digital Multimeter 1000V
Overview

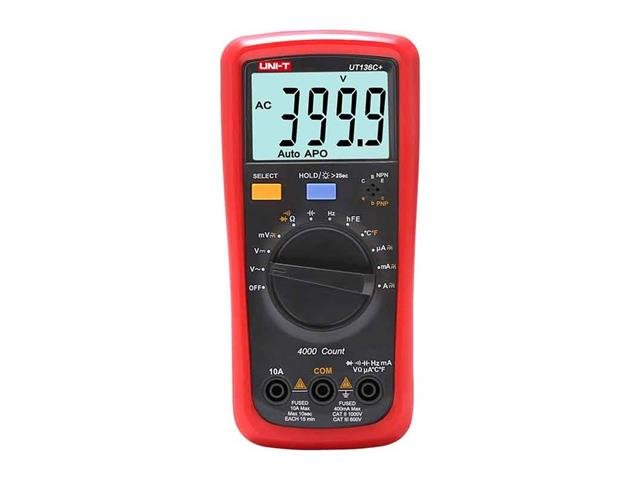

UT136C+ digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
Features
Measures up to 1000V and 10A AC/DC voltage and current
Equipped with 3mm protective sleeve; 2 meters drop proof
Large LCD display; Overload alarm
Quick sampling rate, up to 4 times/s
Quick capacitor measurement (measures 1mF in 4 seconds)
Low power consumption and auto power saving function; long battery service life (>500hrs)
Specifications
Specifications
Range
UT136C+
DC voltage (V)
1000V
±(0.7%+3)
AC voltage (V)
1000V
±(1%+3)
DC current (A)
10A
±(1%+3)
AC current (A)
10A
±(1.2%+5)
Resistance (Ω)
40MΩ
±(0.8%+2)
Capacitance (F)
40mF
±(3%+5)
Frequency (Hz)
400Hz~40mHz
±(0.1%+4)
Temperature (°C)
-40~1000℃
±(1%+4)
Temperature (℉)
-40~1832℉
±(1.5%+5)
Features
Display count
4000
hFE
Transistor measurement
Yes
NCV
Non-contact voltage detection
Diode/transistor
Yes
Continuity buzzer
Yes
Data hold/Auto power off
Yes
Low battery/Indication
Yes
LCD backlight
Yes
Safety rating
CAT Ⅱ 1000V, CAT Ⅲ 600V
Yes
Drop test
2m
Yes
General Characteristics
Power
1.5V battery (R6) x 2
Display
56.5mm x 36mm
Product color
Red and grey
Product net weight
330g
Product size
175mm x 83mm x 53mm
Standard accessories
Batteries, test leads, temperature probe (UT136C+)
Experience precision with the UNI-T UT136C+ Digital Multimeter, measuring up to 1000V and 10A AC/DC. Its rugged design withstands drops of up to 2 meters, while the large LCD display offers quick, accurate readings. Perfect for professionals and DIY enthusiasts, this multimeter features auto power off and a long-lasting battery for reliable performance, making it an essential tool for all your electrical needs.
