Digital RCD (ELCB) Tester Display CNT 1000, Phase Switch, Connection Check Function, Auto Ramp Fucntion, Disconnect Buzzer, Over-range Display:OL, Fused, MIS-Operation Buzzer, Power Off Buzzer, Full Icon Display, Voltage Range:30~600V, FREQ:45Hz~65Hz
Digital RCD (ELCB) Tester Display
Overview

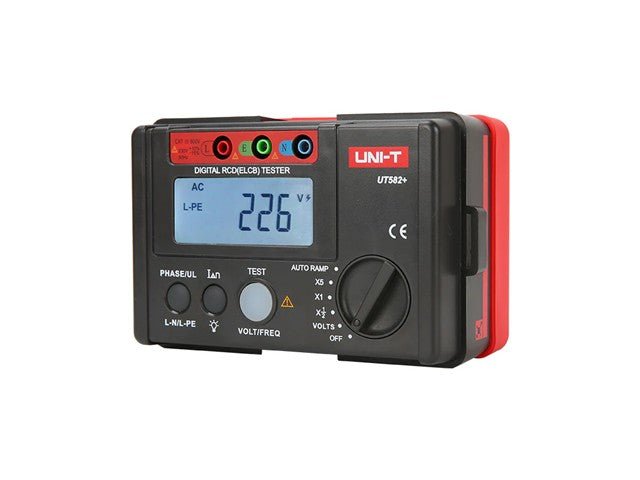

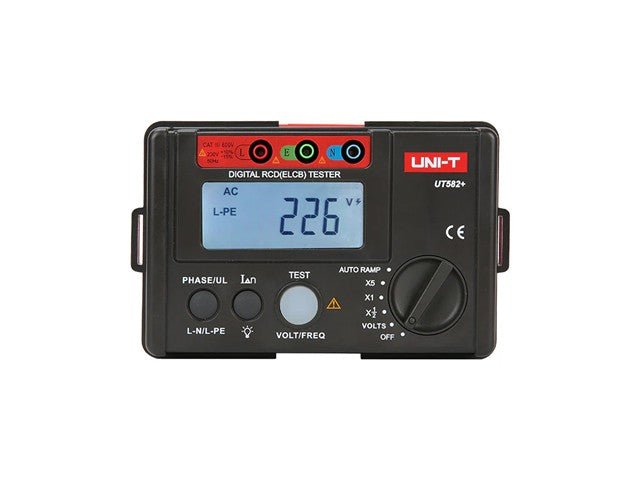

UT582+ is mainly used to detect whether the RCD in the
circuit can be triggered normally. It is only suitable for
single-phase circuits with the supply voltage range of
195V~253V. Its voltage measurement range is 30V~600V,
45Hz~65Hz.
Features
-
Power Off Gear: Easily switch off the device when not in use.
-
LCD Backlight: Enhances visibility in various lighting conditions.
-
Data Hold: Freezes and retains the displayed data for convenience.
-
AUTO RAMP: Automatic ramp function for efficient operation.
-
Disconnect Buzzer: Audible alert when disconnecting the device.
-
Over-Range Display (OL): Indicates when the measurement exceeds the range.
-
Protective Fuses: Equipped with fuses to protect against overloads.
-
Mis-Operation Buzzer: Audible warning for incorrect operations.
-
Power Off Buzzer: Audible alert when turning off the device.
-
Full Icon Display: Comprehensive icon display for easy interpretation of information.
-
Certifications: CE, UKCA, ensuring compliance with safety standards.
Specifications
| Specifications |
Range |
UT582+ |

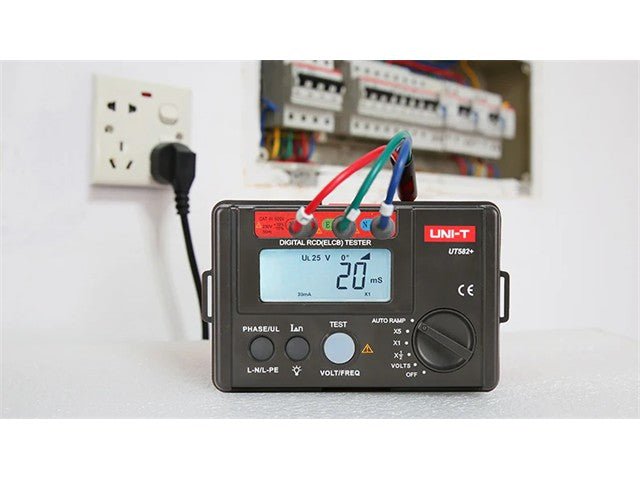

| RCD measurement |
Range setting |
Rated operating current |
Trip time |
|
| X 1/2 |
10mA/20mA/30mA/100mA/300mA/500mA |
2000ms |
-10%~0% |
| X 1 |
10mA/20mA/30mA/100mA/300mA |
1000ms |
0%~10% |
| 500mA |
300ms |
0%~10% |
| X 5 |
10mA/20mA/30mA |
40ms |
0%~10% |
| AUTO RAMP |
10mA/20mA/30mA/100mA/300mA/500mA |
300ms |
-10%~10% |
| Trip time accuracy |
±(2%+2) |
| Operating voltage (Freq.) |
195V~253V |

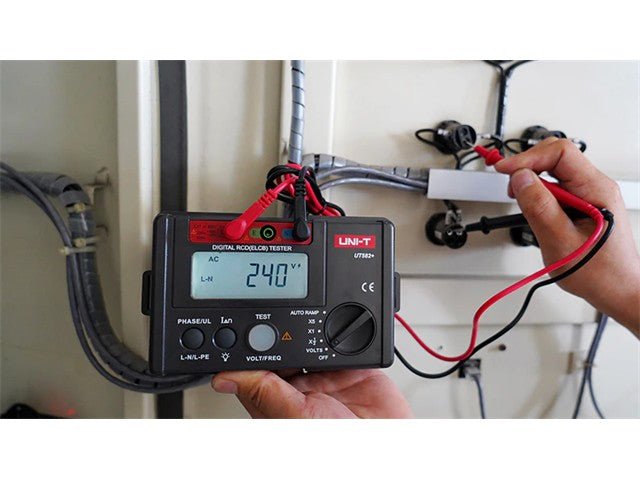

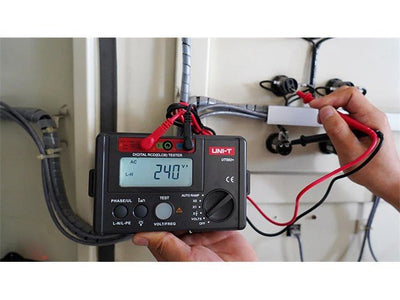

| Voltage measurement |
Voltage range |
30~600V |
| Frequency |
45Hz~65Hz |
| Resolution |
1V |
| Accuracy |
±(3%+3) |
| Features |
| Display count |
999 |
| Power off gear |
Yes |
| Low battery indication |
<7.2V |
| APO |
Auto power off fuction |
| LCD backlight |
Yes |
| Data hold |
Yes |
| Phase angle selection |
0° and 180° |
| Connections check |
Simultaneously test the trip time and trip current |
| AUTO RAMP |
Yes |
| Disconnect buzzer |
Yes |
| Over-range display |
OL |
| Fused |
Yes |
| Mis-operation buzzer |
Yes |
| Power off buzzer |
Yes |
| Full icon display |
Yes |
| Compliance standard |
IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 |
| Lead sequence check |
LCD |
| General Characteristics |
| Power |
1.5V battery (LR6) x 6 |
| Display |
71mm x 34mm |
| Product color |
Red and grey |
| Product net weight |
400g |
| Product size |
160mm x 100mm x 71mm |
| Standard accessories |

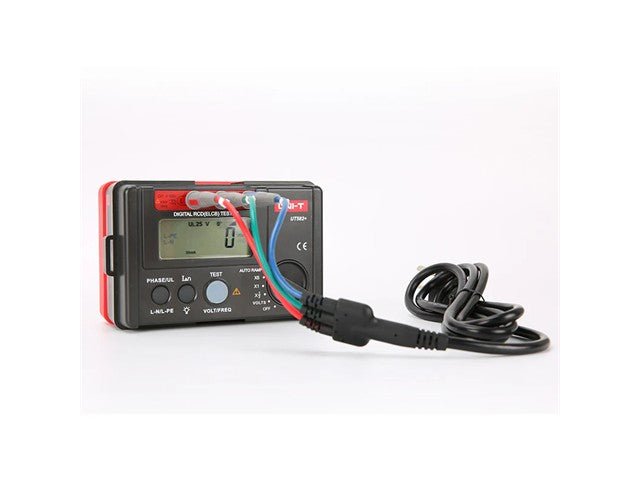

Test line, carrying bag, elastic strap |
| Standard individual packing |
Gift box, English manual |
Downloads
Additional Information
| Device |
Tester Display |
| Type |
Digital RCD (ELCB) |
The UNI-T UT582+ Digital RCD Tester is your essential tool for ensuring electrical safety. With features like an automatic ramp function, audible alerts, and a clear LCD display, it simplifies the testing of single-phase circuits. Enjoy reliable voltage measurements up to 600V and peace of mind with CE and UKCA certifications. Perfect for professionals, this tester enhances your efficiency and safety on every job.
