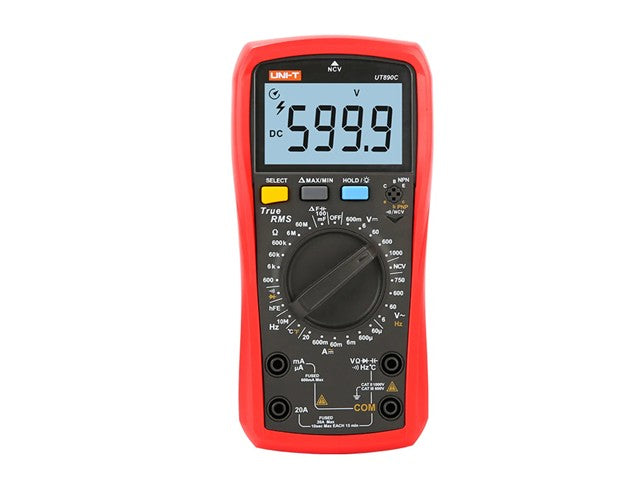

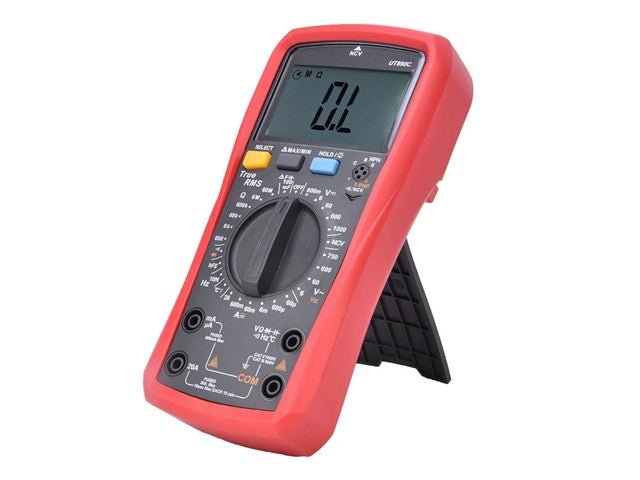

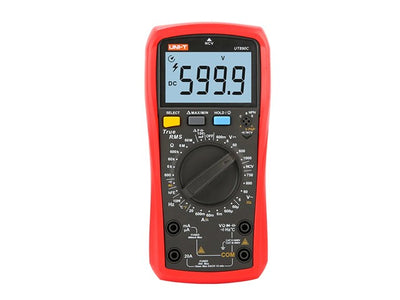

UNI-T UT890C

Name: UNI-T UT890C - Communica [Part No: UNI-T UT890C]
Brand: Uni-T
SKU: UNI-T UT890C
Price: 680 ZAR
Availability: InStock

SKU: UNI-T UT890C

BRAND: Uni-T

In Stock
R 782.00_{(inc VAT)}
R 680.00_{(ex VAT)}

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimeter 1000VDC/750VAC,20A AC/DC, RES:60M,CAP6.000nF~100.0mF, FREQ:9.999Hz～9.999MHz, Display Count 6000,MAX/MIN , TRUE RMS, Diode, Buzze R, hFE, NCV, REL, Data Hold, LCD Backlight, Low Batt Indication, Auto PWR OFF, TEMP:-40 °C~1000°C

1000VDC/750VAC Digital Multimeter

Specifications

Kind of display used	LCD
Display parameters	(6000)
DC voltage measuring range	0.1...600mV/6V/60V/600V/1kV
DC voltage measuring accuracy	±(0.5% + 2 digit)
AC voltage measuring range	1mV...6V/60V/600V/750V
AC voltage measuring accuracy	±(0.8% + 3 digit)
DC current measuring range	0.01...60µA/6mA/60mA/600mA/20A
DC current measuring accuracy	±(0.8% + 8 digit)
AC current measuring range(1) indirect measurement)	0.001...6mA/60mA/600mA/20A
AC current measuring accuracy	±(1% + 12 digit)
True effective value measurement	True RMS
Resistance measuring range	100mΩ...600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance measuring range	0.001...10nF/100nF/1mF/10mF/100mF
Capacitance measuring accuracy	±(3%+ 10 digit)
Frequency measuring range	10...10MHz
Frequency measuring accuracy	±(1%+5 digit)
Temperature measuring range	-40...1000°C
Resistance measuring accuracy	±(0.8%+3 digit)
Diode test	0...3V
Continuity test	acoustic indication, <10Ω
Operating temperature	0...40°C
Conform to the norm	CAT II 1000V CAT III 600V EN 61010
Related items	5790D, 5793D, 5794D, 5795D, 5797D, BKP60, EX871515, EX881602, EX881603, EX881605, PKT-PTA, PKT-PTF-10, PKT-PTF-20, PKT-PTF-25, PKT-PTF-30, PKT-PTF-40, PKT-PTF-50, PKT-PTF-55, PKT-PTF-56, PKT-PTF-60, SE027, SE028, SE029, SE030, SE031, SE059, SE060, SE061, SE062, SE001, SE002, SE003, SE004, SE000, TESTO-06020393, TESTO-06020645, TESTO-06024592, TESTO-06024892, TESTO-06280020, TESTO-06281292, TESTO-06287533, TP200, TP400, TP870, TP873, TP873-5M, TP882, TP-111, TP-112, TP-02, TP-03, TP-04, TP-06, TP-08, TP-09, TPK-59, TPK-62, UTT10K, UTT12

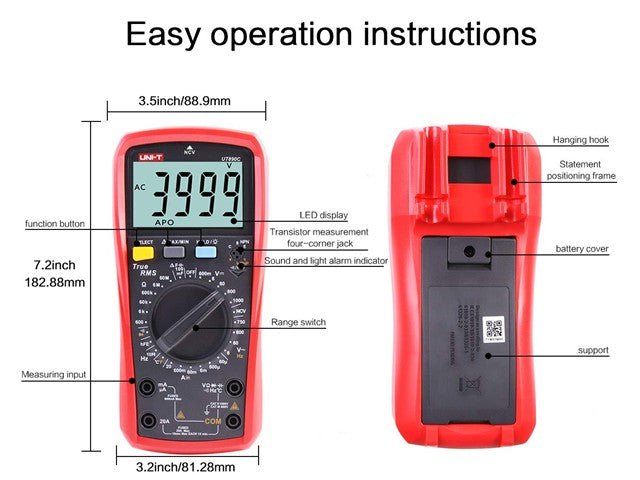

Dimensions (W x H x D)	88x183x56mm
Illumination	yes

Power supply

battery R6 AA 1,5V x2

Standard equipment

temperature probe
test leads

Measuring instrument features

automatic power-off
HOLD function
MIN/MAX function
non-contact voltage detector
REL function

Downloads

Datasheet - UNI-T UT890C

Additional Information

Device	Multimeter
Type	1000VDC/750VAC \| Digital
