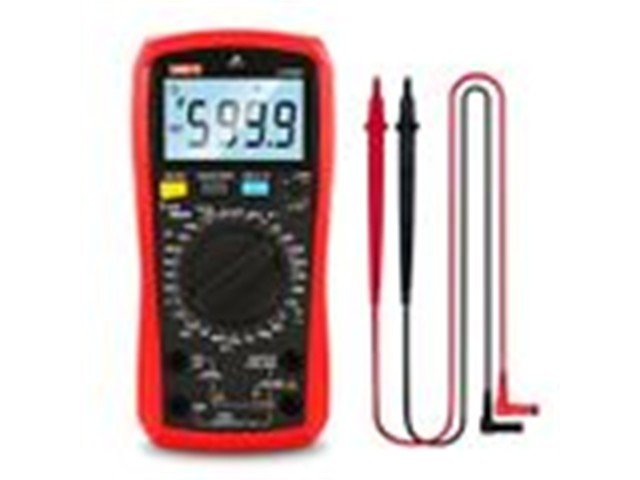

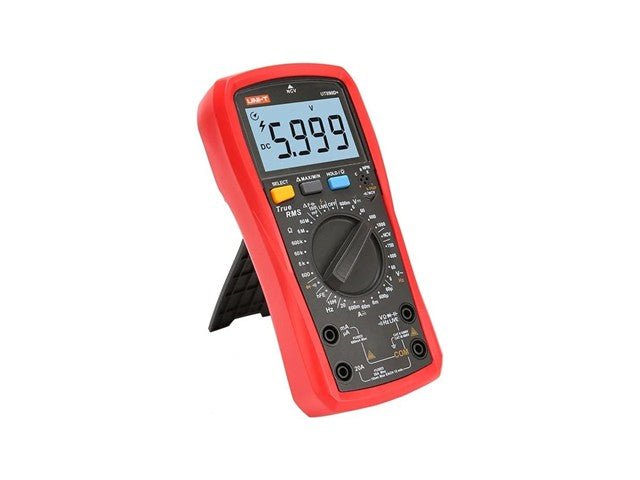

Digital Multimeter 1000VDC/750VAC,20A AC/DC, RES:60M, CAP6.000nF~100.0mF, FREQ:9.999Hz～9.999MHz, Display Count 6000, Max/Min, True RMS, Diode, Buzze R, hFE, NCV, REL, Data Hold, LCD Backlight, Low Battery Indication, Auto Power OFF
Digital Multimeter 1000VDC/750VAC
Specifications
- DC Voltage : 600mV/6V/60V/600V/1000V : ±(0.5%+2)
- AC Voltage : 6V/60V/600V/750V : ±(0.8%+3)
- ACV Frequency : 10Hz～10kHz : ±（0.1%+5)
- DC Current : 60uA//600uA/6mA/60mA/600mA/20A : ±(0.8%+8)
- AC Current : 60uA/600uA/6mA/60mA/600mA/20A : ±(1%+12)
- Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ : ±(0.8%+3)
- Capacitor : 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF : ±(3%+10)
- Frequency : 9.999Hz～9.999MHz : ±(1.0%+5)
Fetures
- Display Count : 6000
- Manual Range : Yes
- NCV : Yes
- hFE : Yes
- Diode Test : Yes
- Continuity Test : Yes
- Live : Yes
- True RMS : Yes
- Fuse blowing alarm : Yes
- Acousto-optic indication(NCV/continuity) : Yes
- High voltage false detection : 1000Vrms : Yes
- Current (AC/DC) mode memory : Yes
- Over-current alarm : ≥20A : Yes
- Low Battery Indication : ≤2.5V : Yes
- Data Hold : Yes
- REL : Yes
- Max/Min : V, A : Yes
- Auto Power Off : 15Min : Yes
- Back light : 30s : Yes
- Operation Temperature : 0℃～40℃
- Safety : CAT Ⅱ 1000V/CAT III 600V
General Characteristics
- Power : 1.5V x 2
- Product color : Red and Gray
- Product Net Weight : 346g
- Product Size : 183mm x 88mm x 56mm
Additional Information
| Device |
Multimeter |
| Type |
Digital | 1000VDC/750VAC |
