Digital Storage Oscilloscope 2CH 100MHZ 7INCH TFT Colour Display 1G Sa/s, 1mV/div~20V/divG, Memory Depth 64kpts, USB Host, USB Device, Pass/Fail, (306×138× 124mm) 2.5Kg
Digital Storage Oscilloscope
Overview

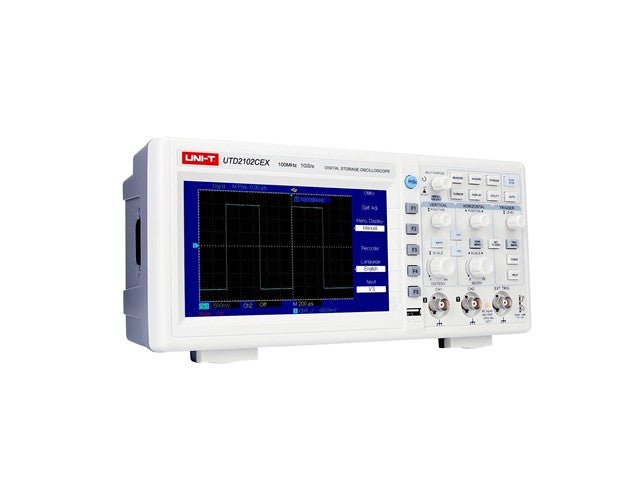

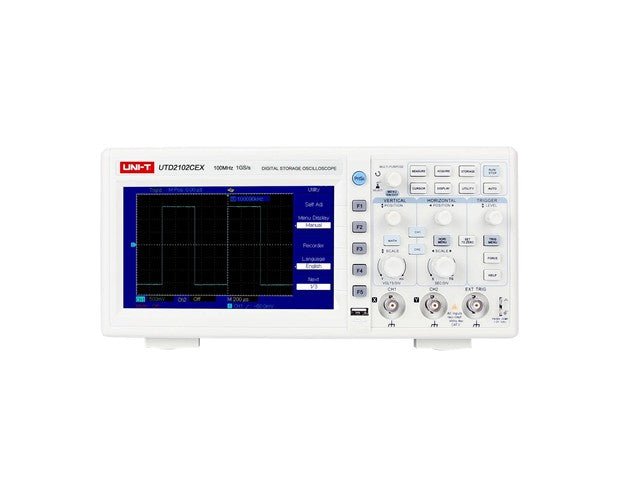

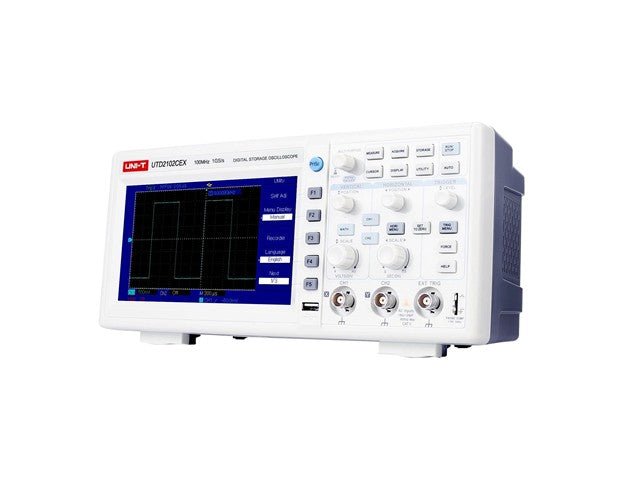

For electrical engineers and electrical engineering professors who demand precision and versatility in waveform analysis, we present the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO). This advanced instrument is designed to meet your exacting standards, offering a wealth of features and capabilities that will take your waveform analysis tasks to the next level.
Features
- 50/100/200MHz bandwidth
- 2 channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7 inch TFT LCD
- Supports plug-and-play USB storage device; communication with and remote control of computer through the USB device
Specifications
| Model Number |
UTD2102CEX+ |
| Scope Type |
DSO |
| Bandwidth |
100MHz |
| Channels |
2Ch |
| Scope Sample Rate |
1.0GSa/s |
| Memory Depth |
64kpts |
| Refresh Rate |
5,000wfms/s |
| Vertical Scale @1MΩ |
1V/div to 20V/div |
| # Automatic Measurements |
34 |
| Included Bus Protocols |
None |
| Optional Bus Protocols |
None |
| Logic Pod Included |
Not Available |
| Signal Generator Function |
Not Available |
| Frequency Meter |
6-bit |
| Display Size (in) |
7in |
| Touchscreen |
No |
| Warranty |
3 years |
| Product Dimensions (L x W x H) |
12 in x 4 in x 5 in |
| Product Weight |
6 lb |
| Certifications |
CE/cETLus/UKCA |
| Documents |
English download guide, multi-language safety manual, calibration report (COC) |

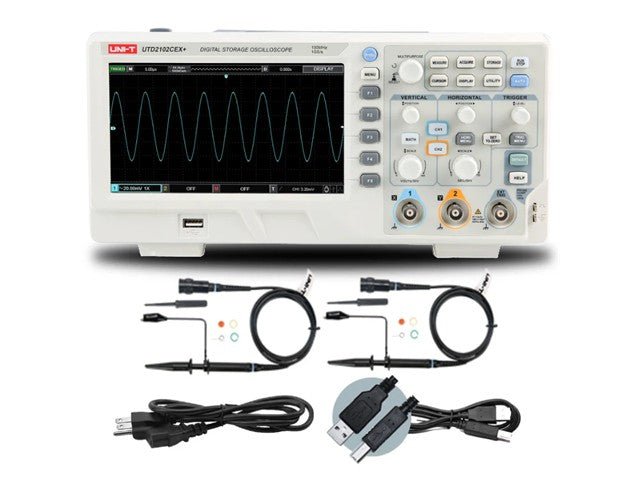

| Included Accessories |
Oscilloscope probe (UT-P04)*2 |
| Standard Accessories |
Power cord, USB2.0 printing cable |
Downloads
Additional Information
| Device |
Oscilloscope |
| Type |
Digital | Storage |
