The UTG900E Series is a handheld mini economical, high performance,
arbitrary function waveform generator.It provides a unique and most
cost-effective solution for electronics enthusiasts with the minimum
resolution up to 1μHz, mini size and light weight to our most affordable
line of generators. Flexibly meet your testing needs in various scenarios,
and fully improve your work and learning efficiency.
Feature
Max. Output Frequency: Reach new heights with a maximum output frequency of 60 MHz.
Sample Rate: Achieve precision with a sample rate of 200 MSa/s.
Vertical Resolution: Enjoy exceptional clarity with 14 bits of vertical resolution.
Channels: Harness versatility with 2 independent channels at your disposal.
Specifications
Model Number
UTG962E
Channels
2Ch
Memory Depth
4kpts
Frequency
60MHz
Square/Pulse (Hz)
20MHz
Vertical Resolution
14 Bits
Waveforms
Sine Square Ramp Pulse Noise DC Arbitrary
# Built-in Arbs
24
Modulation Types
AM FM FSK PM
Sweep Modes
Linear Logarithmic
Frequency Counter
100mHz - 100MHz
Display Size (in)
4.3in
Touchscreen
No
Warranty
3 years
Product Dimensions (L x W x H)
7 in x 3 in x 4 in
Product Weight
1 lb
Certifications
CE/cETLus/UKCA
Documents
English download guide

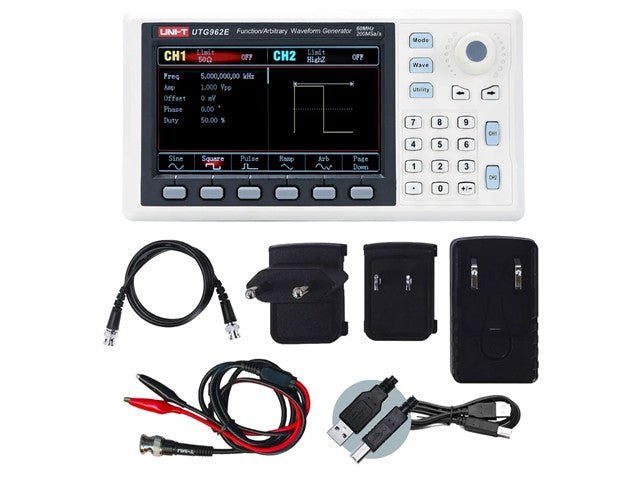

Included Accessories
Power adapter (5V/2A, including UL, CE adapter), USB to DC power cord
Standard Accessories
BNC straight-through cable, BNC to alligator clip cable

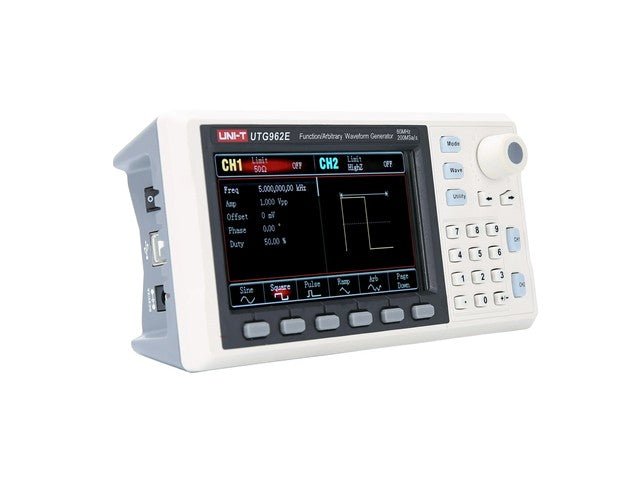

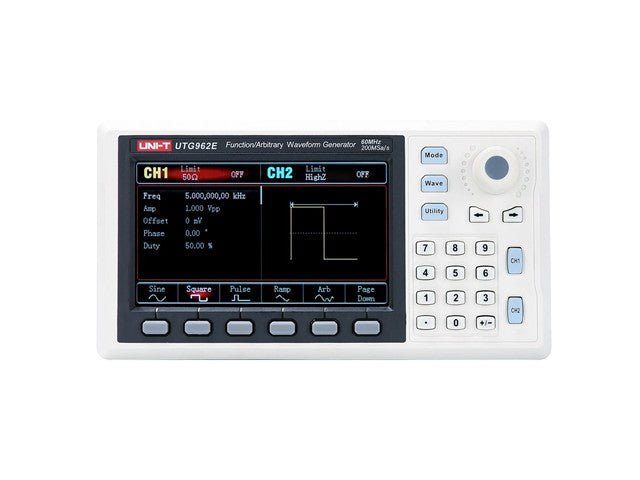

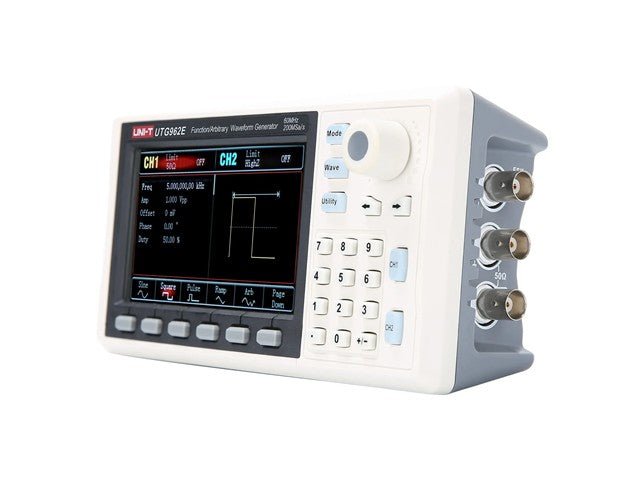

Discover the UNI-T UTG962E, a compact and powerful 60MHz function/arbitrary waveform generator designed for electronics enthusiasts. With dual channels, a high sampling rate of 200MS/s, and 14-bit vertical resolution, it ensures precise testing and enhances your productivity. Lightweight and portable, this generator is your ideal partner for versatile testing in any scenario.
