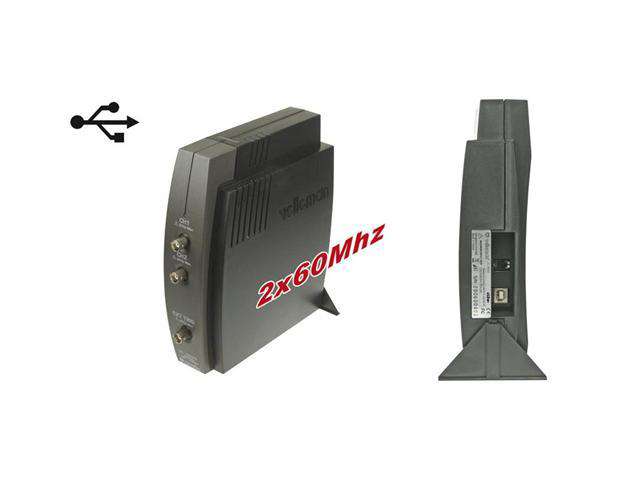

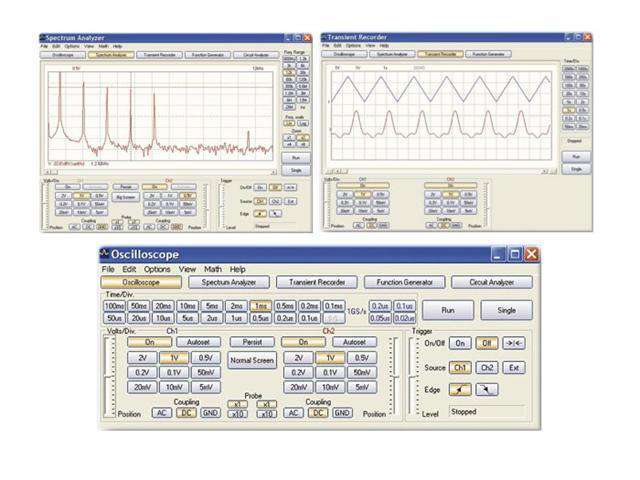

The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and a sampling frequency of up to 1GHz are giving this unit all the power you need. The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy. This scope comes in a stylish vertical space saving design. Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application.
Features
Oscilloscope:
time base : 20ns to 100ms per division
trigger source: CH1, CH2, EXT or free run
trigger edge : rising or falling
trigger level : full-screen adjustable
step interpolation : linear or smoothed
markers for : voltage and time/frequency
input range : 5mV to 2V/division
input sensitivity: 0.15mV display resolution
auto set-up function and X10 option
pre-trigger function
readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
Discover the VELLEMAN PCSU1000, a powerful 2-channel USB oscilloscope that transforms your PC into a high-resolution signal analyzer. With a remarkable 1GHz sampling frequency and 0.15mV sensitivity, it’s perfect for precise electrical measurements. Effortlessly visualize data on your laptop, making field measurements simple and efficient. Enhance your projects with advanced software and customizable features, all in a sleek, space-saving design.
