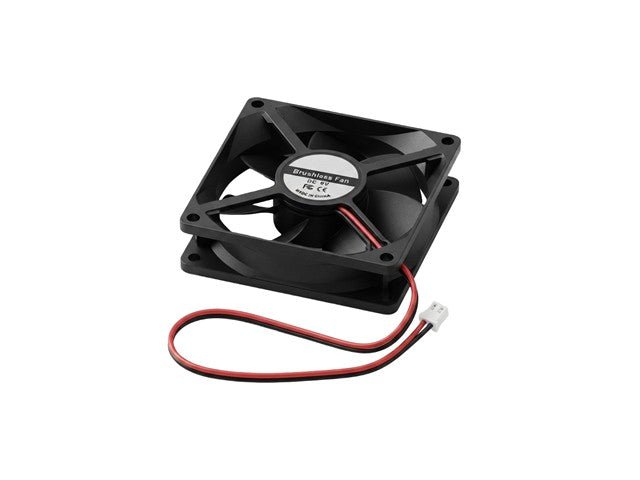

Fan 80X80X25MM 9VDC Sleeve Bearing AF=39.8(CFM) 2800RPM 0.28A 26DBA. 200MM Cable With 2 Pin (PH-2.54) Connector
DC Brushless Cooling Fan
Specifications
Product Type: DC Brushless Cooling Fan
Fan Dimensions: 80 × 80 × 25 mm
Rated Voltage: 9 VDC
Rated Current: 0.28 A
Bearing Type: Sleeve Bearing
Fan Speed: 2800 RPM
Airflow: 39.8 CFM
Noise Level: 26 dBA
Power Consumption: 2.52 W
Cable Length: 200 mm
Connector Type: 2-Pin PH 2.54 Connector
Motor Type: Brushless DC (BLDC)
Frame Material: Plastic
Blade Material: Plastic
Direction of Airflow: Standard axial airflow
Applications: Computer systems, power supplies, industrial equipment, networking devices, telecommunications equipment, control panels, and electronic cooling applications
Features: Quiet operation, sleeve bearing design, compact 80 mm form factor, low power consumption, reliable cooling performance, and pre-installed 200 mm cable with 2-pin PH 2.54 connector.
Additional Information
Device
Cooling Fan
Type
DC | Brushless | Cooling | Fan
Enhance your cooling solutions with the BDD FANDC009080-25 DC Brushless Cooling Fan. Compact and efficient, this 80x80mm fan delivers a powerful airflow of 39.8 CFM at a whisper-quiet 26 dBA. Perfect for computers, industrial equipment, and more, it ensures reliable performance while minimizing noise and power consumption. Upgrade your systems with this durable, easy-to-install fan featuring a 200mm cable and 2-pin connector.
