Connector design

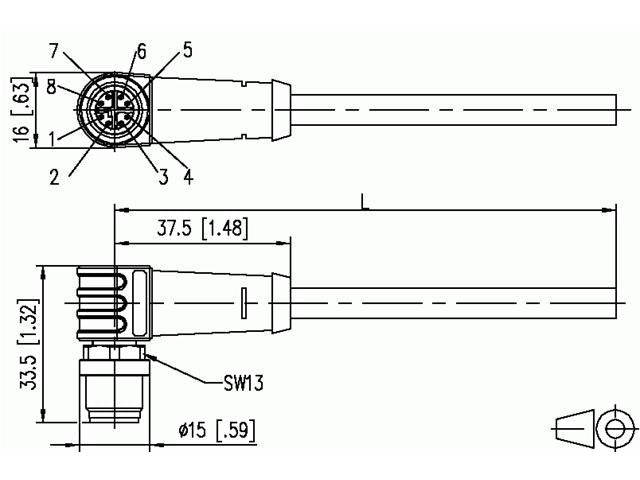

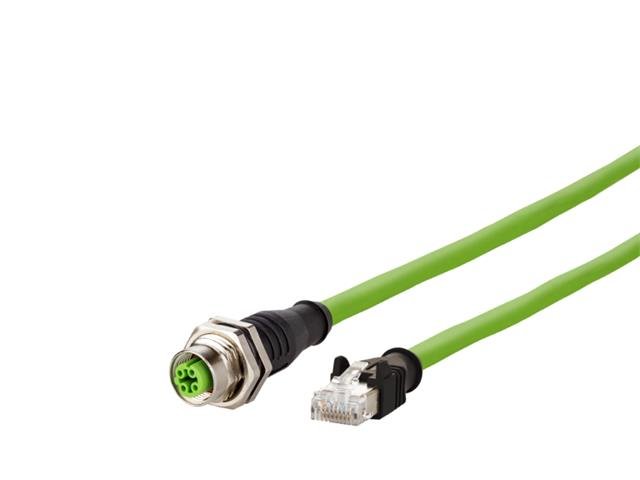

Connecting cable female cable connector - RJ45 connector

Cable length

0.3 m (Other lengths are available on request).

Version

Connecting cable

Connector locking system

screw/lock

Termination

molded/crimp

Degree of protection

IP67

Connection cross-section

1 x 4 x AWG 22

Temperature range from/to

-40 °C / 85 °C

Mechanical operation

> 100 Mating cycles

Weight (g)

55.4

Rated voltage

50 V

Rated impulse voltage

1000 V

Rated current

1.5 A

Pollution degree

3

Overvoltage category

II

Insulating material group

II

EMC compliance

shielded

Contact body material

PUR

Contact material

CuSn (bronze)

Contact plating

Au (gold)

REACH SVHC

CAS 7439-92-1 (Lead)

SCIP number

SCIP-number not available

Structure of the cable

Cable type

Profinet/Ethernet CAT5e

Cable diameter

6.7 mm

Cross section

4 x AWG 22

Sheath material

PUR

Single-lead insulation

Polyolefin

Single-lead structure

AWG 22/7

Cable color

green

Mechanical properties

Bending radius, fixed cable

≥ 5 x Ø

Bending radius, moving cable

≥ 15 x Ø

Bending cycles

2 million

Permitted acceleration

max. 2 m/s²

Travel distance, horizontal

at 5 m/s² -> 5 m

Travel distance, vertical

at 5 m/s² -> 5 m

Travel speed

≤ 200 m/min (5 m horizontal distance)

Thermal properties

Temperature range cable in move from/to

-20 °C / 60 °C

Temperature range cable fixed from/to

-40 °C / 80 °C
